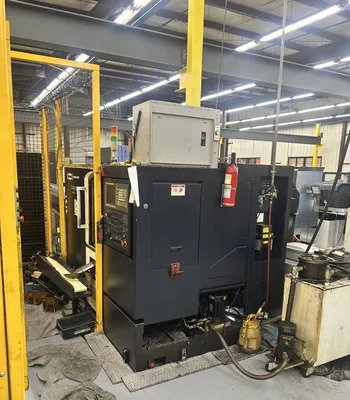

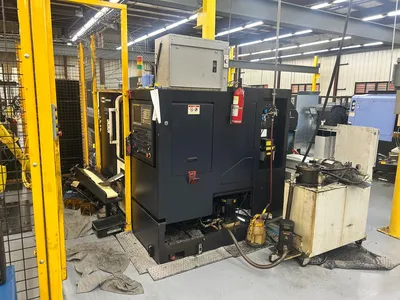

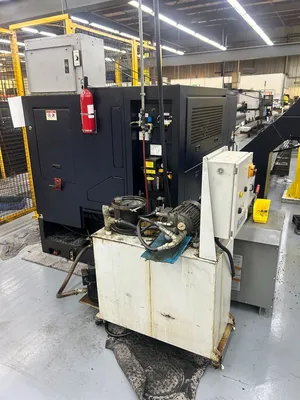

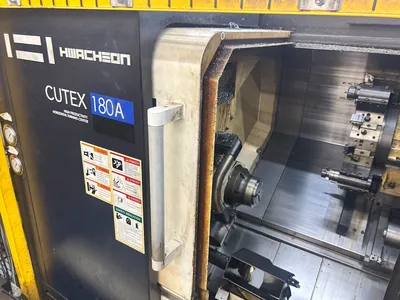

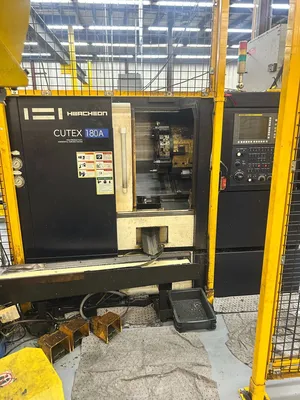

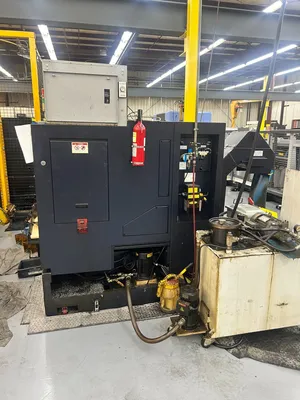

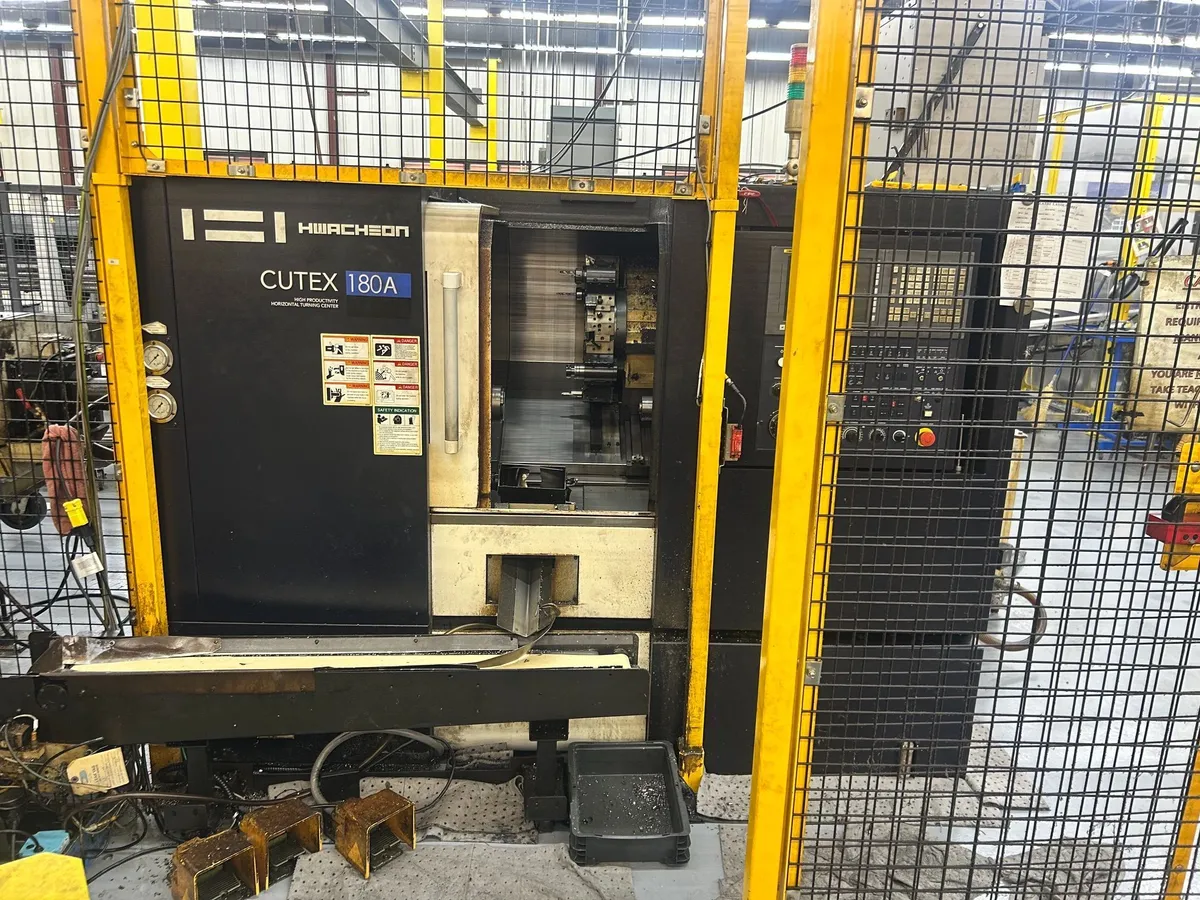

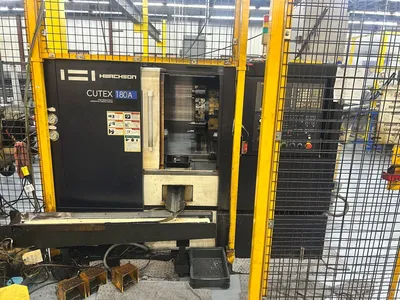

2017 Hwacheon CUTEX-180A Horizontal CNC turning center

Description

2017 Hwacheon CUTEX-180A Horizontal CNC turning center
Mfg: Hwacheon
Model: CUTEX-180A
YOM: 2017
Capacity & Workpiece Dimensions
Chuck Size: 6 inches (155 mm)
Swing Over Bed: Ø 545 mm (21.46 inches)
Maximum Cutting Diameter: Ø 350 mm (13.78 inches)
Standard Cutting Diameter: Ø 206 mm (8.11 inches)
Maximum Cutting Length: 328 mm (12.91 inches) (Note: 528 mm on the extended 'L' model)
Maximum Bar Size Capacity: Ø 51 mm (2.01 inches)
======================

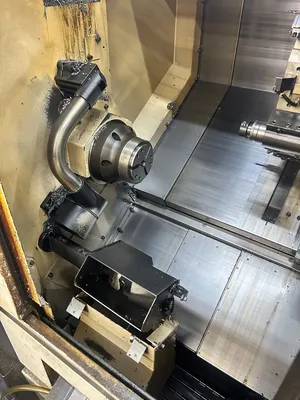

Main Spindle Specifications
Maximum Spindle Speed: 6,000 RPM
Spindle Motor Power: 15 kW / 11 kW (20 HP / 15 HP)
Maximum Spindle Torque: 143.1 Nm
Spindle Nose Type: ASA A2-5

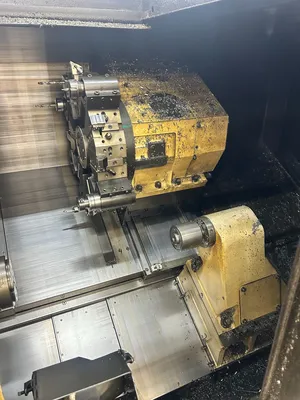

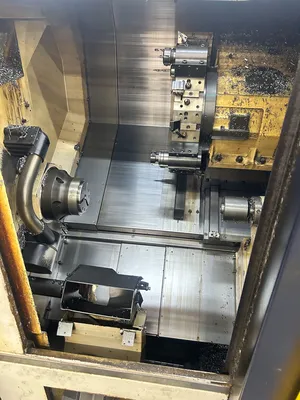

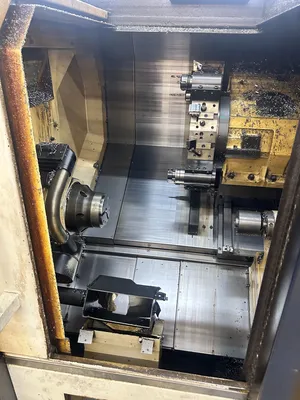

Turret & Tooling:
Number of Tool Stations: 12 Stations
Motion & Travel Axes
X-Axis Stroke: 220 mm (8.66 inches)
Z-Axis Stroke: 580 mm (22.83 inches)
Y-Axis Stroke (If Equipped): ±55 mm (±2.17 inches)
Rapid Traverse Speed: Up to 36 m/min
Guideway Type: High-rigidity linear roller LM guides on all axes
Tailstock (Hydraulic)
Maximum Stroke: 390 mm (15.35 inches) (590 mm on the 'L' version)
Cylinder Diameter: Ø 40 mm (1.57 inches)
Center Taper: MT #4

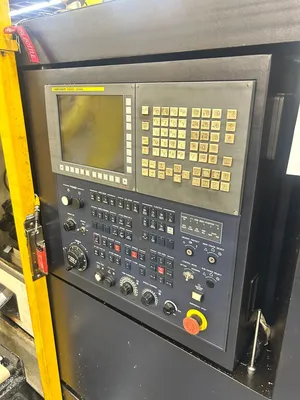

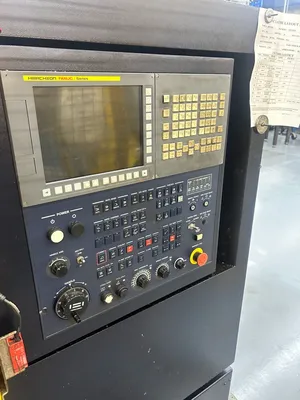

CNC Control – Hwacheon Fanuc i Series
Featuring: high-speed linear roller guideways designed for high productivity.

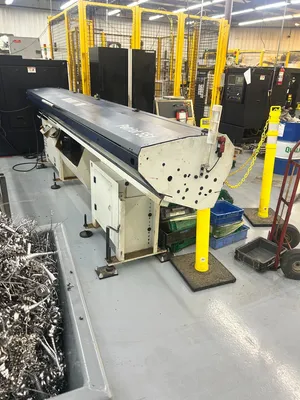

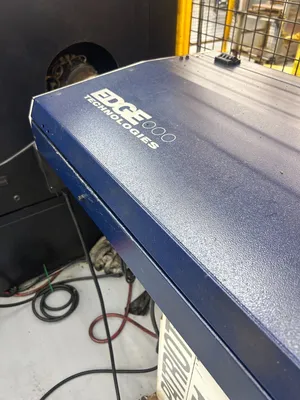

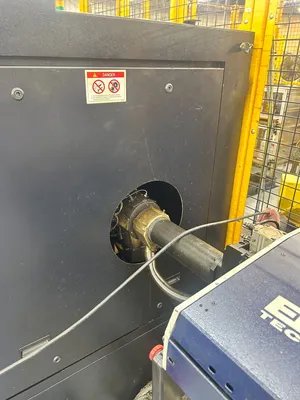

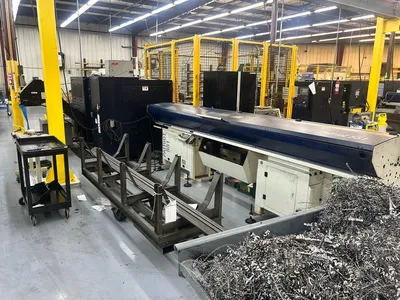

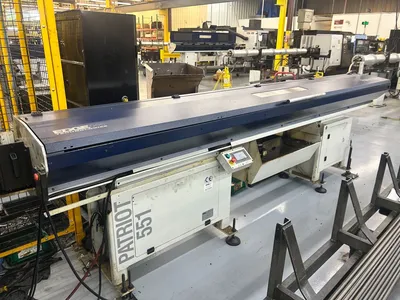

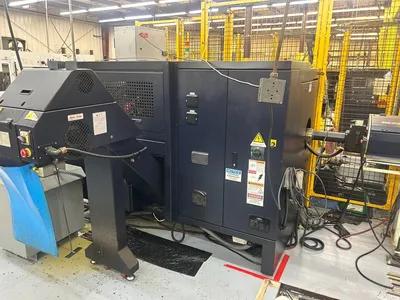

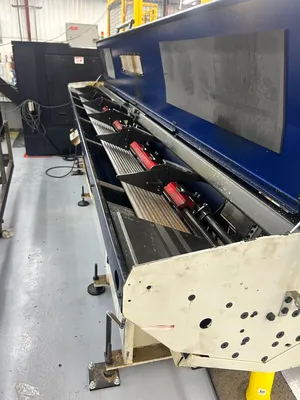

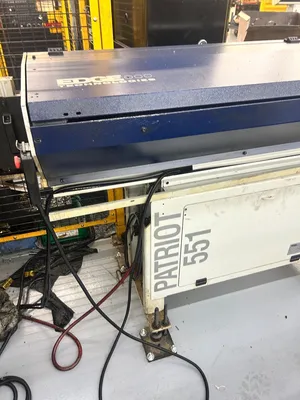

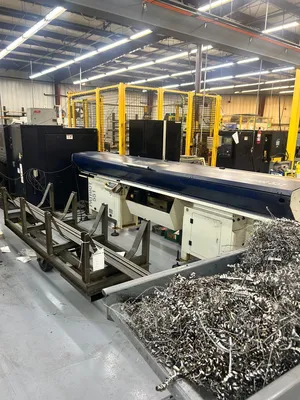

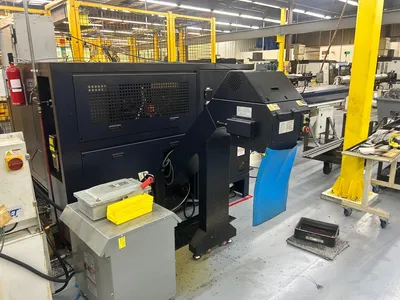

NOTE: This unit is offer by itself, although it in a Fanuc Robotic Cell with with Hwacheon CUTEX-180A MC & a Edge Technologies, Patroit 551 Barfeeder. Inquire with seller on this option.
ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
