Description

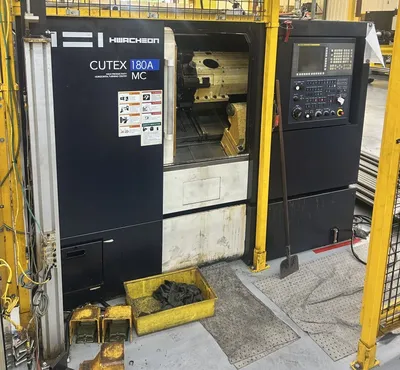

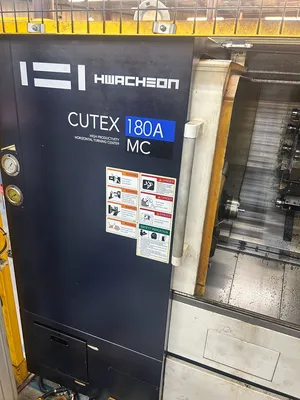

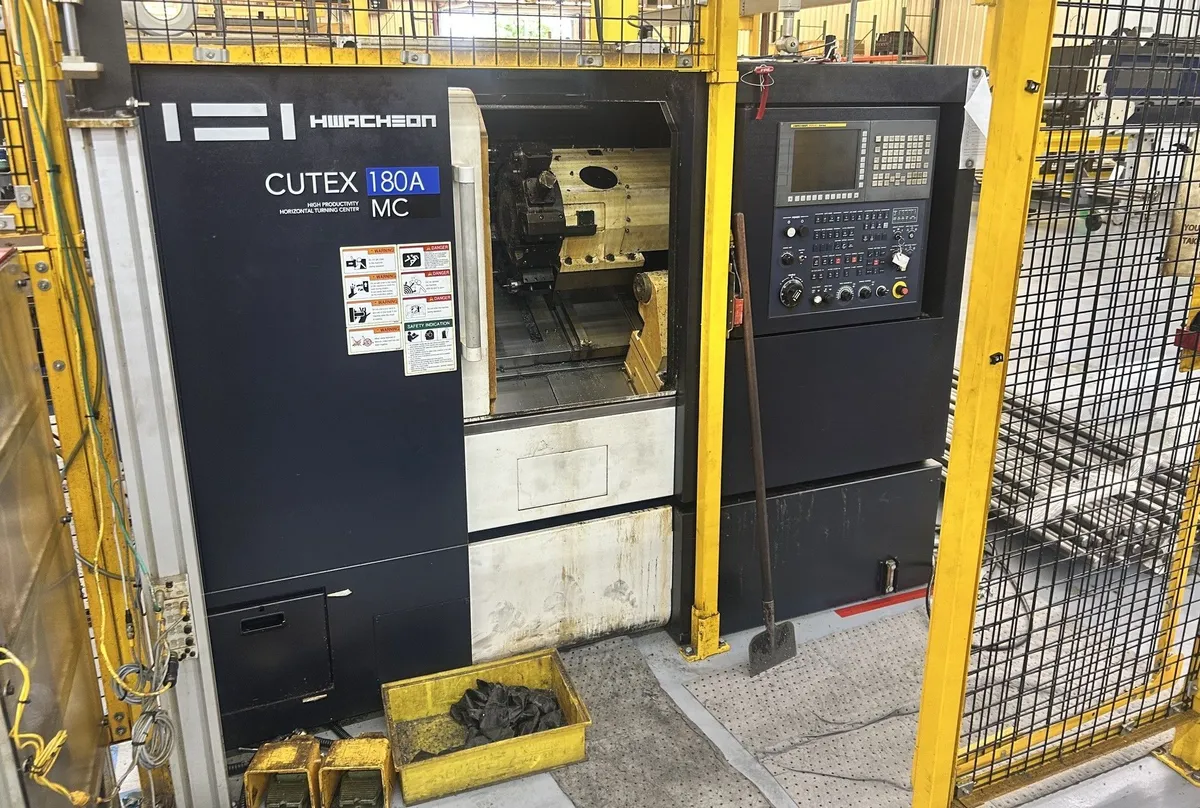

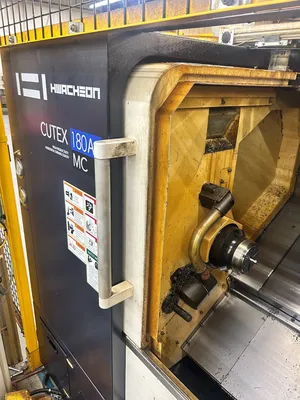

2017 Hwacheon CUTEX-180A MC Horizontal CNC turning center (Live Tooling)
Mfg: Hwacheon
Model: CUTEX-180A MC
YOM: 2017
Capacity & Workpiece Dimensions
Chuck Size: 6 inches
Swing Over Bed: Ø 545 mm (21.46 inches)
Maximum Cutting Diameter: Ø 300 mm (11.81 inches)
Standard Cutting Diameter: Ø 206 mm (8.11 inches)
Maximum Cutting Length: 278.5 mm (10.96 inches)
Maximum Bar Size Capacity: Ø 51 mm (2.01 inches)

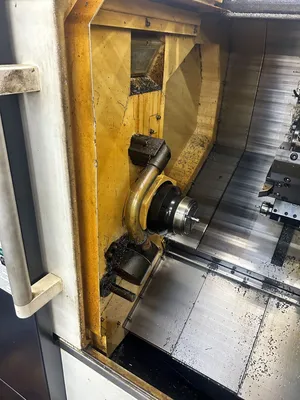

Main Spindle & C-Axis
Maximum Spindle Speed: 6,000 RPM
Spindle Motor Power: 15 kW / 11 kW (20 HP / 15 HP)
Maximum Spindle Torque: 143.1 Nm
Spindle Nose Type: ASA A2-5
Through Spindle Hole Diameter: Ø 62 mm (2.44 inches)
C-Axis Control: Full contouring C-axis for driven-tool synchronizatio

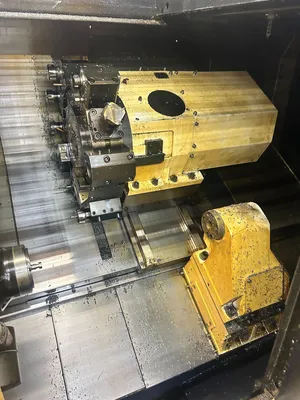

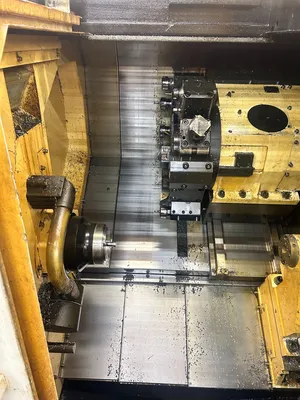

Turnmill Turret & Driven Tools
Turret Interface: BMT55 rigid tool disk
Number of Tool Stations: 12 Stations (with optional 24-position indexing capability)
Turnmill (Live Tool) Motor: 5.5 kW / 3.7 kW (7.5 HP / 5 HP)
Maximum Driven Tool Speed: 5,000 RPM
Turret Indexing Time: 0.344 seconds/step
Tool Shank Sizes: O.D. Square: 25 mm (1") | I.D. Boring Bar: Ø 40 mm (1.5")
Motion & Travel Axes
X-Axis Stroke: 205 mm (8.07 inches)
Z-Axis Stroke: 380 mm (14.96 inches) (580 mm / 22.83" on the extended 'L' version)
Y-Axis Stroke: Not equipped on the MC model (requires the "YMC" configuration)
Rapid Traverse Speed (X / Z): 36 m/min / 36 m/min
Guideways: High-dynamics linear roller LM guides on all axes
Tailstock (Hydraulic)
Maximum Stroke: 390 mm (15.35 inches) (590 mm / 23.23" on the 'L' version)
Cylinder Diameter: Ø 40 mm (1.57 inches)
Center Taper: MT #4

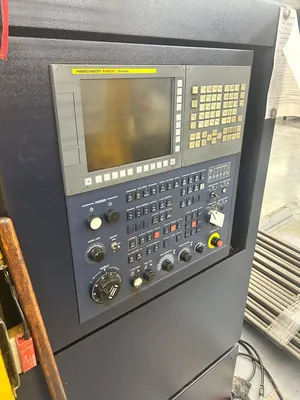

CNC Control – Hwacheon Fanuc i Series

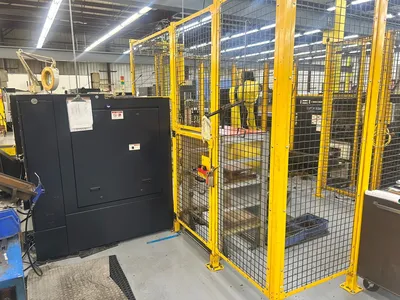

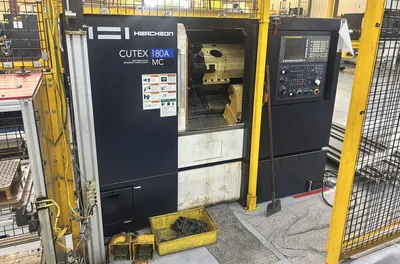

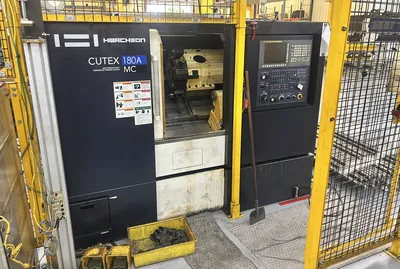

NOTE: This unit is offer by itself, although it in a Fanuc Robotic Cell with with Hwacheon CUTEX-180A MC & a Edge Technologies, Patroit 551 Barfeeder. Inquire with seller on this option.
ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
