Used 2005 SALVAGNINI S4 PUNCH AND SHEAR | Panel Benders

Description

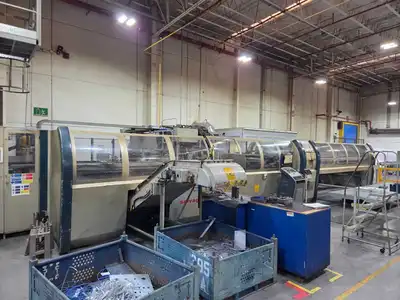

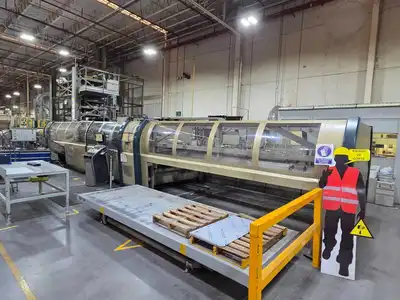

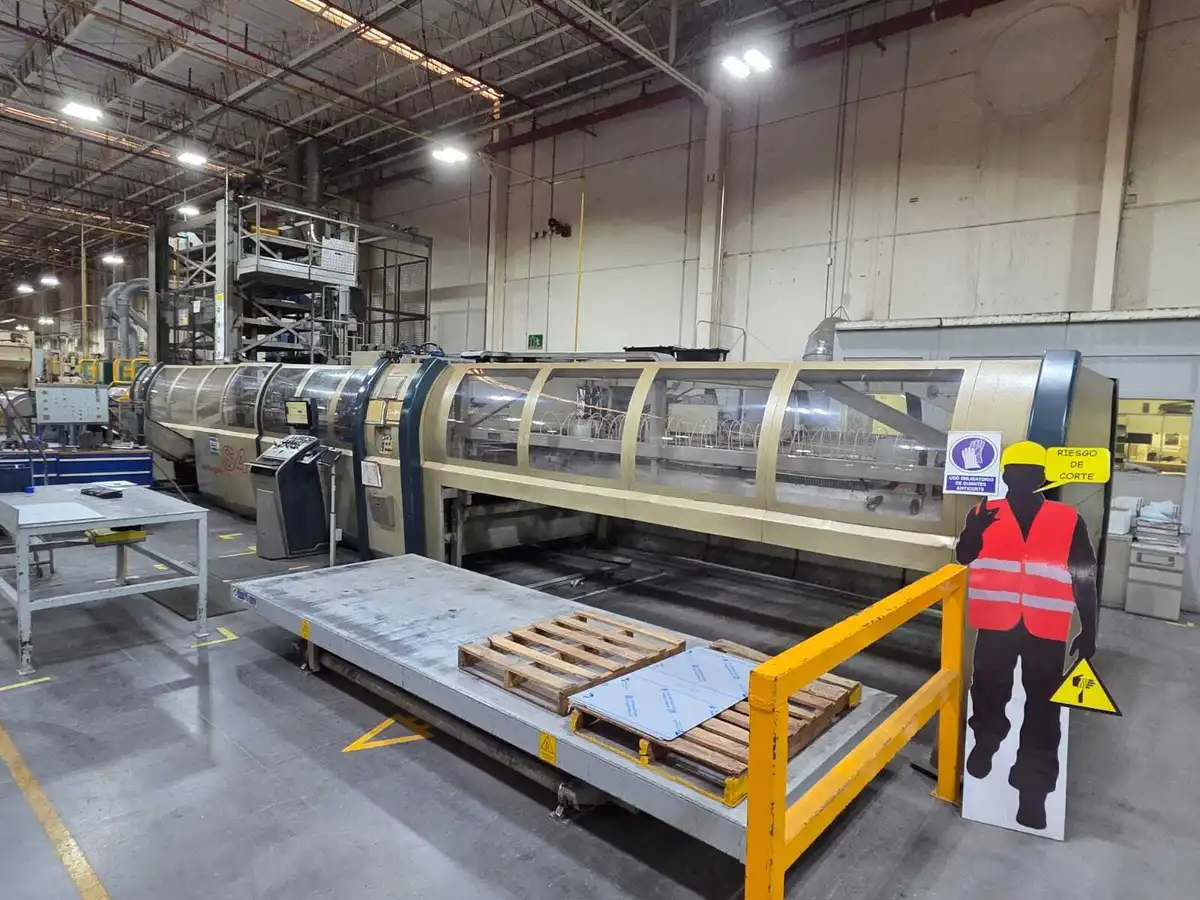

Salvagnini S4-1032 Panel Bender (Punching + Bending System)
Year: 2005

The Salvagnini S4-1032 is a fully automated flexible manufacturing system combining punching and panel bending operations within a single integrated platform. Designed for high-efficiency sheet metal processing, this system enables complete part production with minimal manual intervention, making it ideal for medium to high-volume applications.

The S4-1032 utilizes Salvagnini’s proprietary adaptive bending technology, eliminating the need for traditional tooling changes and allowing automatic setup between different part geometries. The integrated punching unit enables pre-processing of features such as holes, slots, and forms prior to the bending cycle.

Technical Specifications (Typical for Model S4-1032):

Maximum Sheet Size: approx. 3,000 x 1,500 mm (118" x 59")

Maximum Bending Length: approx. 3,200 mm (126")

Maximum Material Thickness:

Mild Steel: up to ~2.5 mm

Stainless Steel: up to ~2.0 mm

Aluminum: up to ~3.0 mm

Bending Technology: Automatic panel bending with universal tools

Punching Unit: Integrated CNC turret punching system

Tool Setup: Fully automatic (no manual tooling change required)

Control System: Salvagnini CNC with parametric programming capability

Part Handling: Automatic sheet positioning and manipulation system

Key Technical Features:

Integrated punching and bending in a single system (one-cycle processing)

Automatic tool adjustment and adaptive bending (no dedicated tooling required)

High repeatability and dimensional accuracy

Reduced setup times and minimal operator intervention

Efficient material handling through built-in manipulator system

Optimized for batch production and high-mix/low-volume environments

Condition:
Machine is reported to be in good working condition, fully operational, and maintained with OEM (Salvagnini) support, ensuring reliability and performance.

Applications:

Electrical cabinets and enclosures

HVAC components

Appliance manufacturing

Automotive and industrial sheet metal parts
