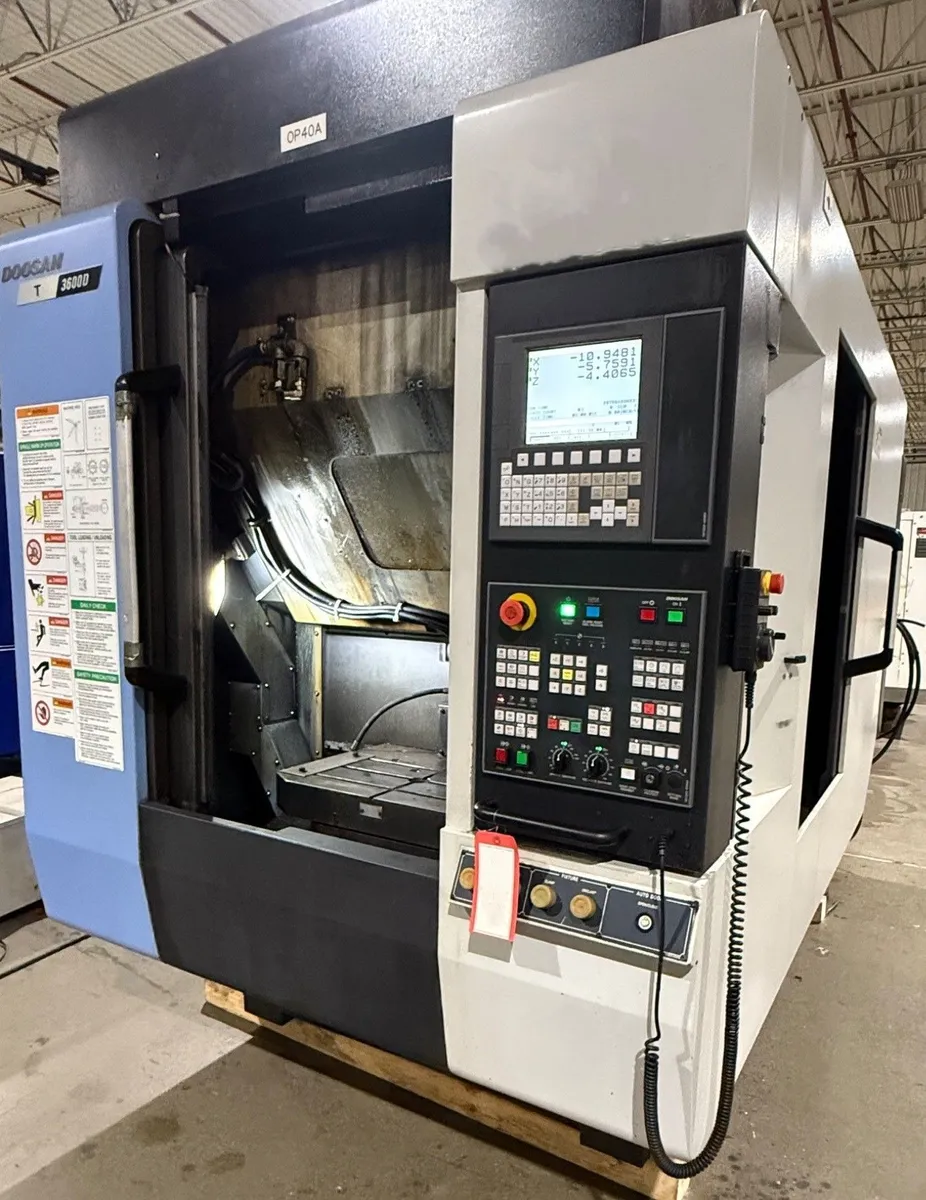

2018 DOOSAN T 3600D CNC DRILL TAP CENTER

Description

2018 DOOSAN T 3600D CNC DRILL TAP CENTER
Specifications
Travels (X / Y / Z): 20.5" x 14.2" x 13.8" (520 x 360 x 350 mm).
Rapid Traverse Rates: 1,889.8 ipm (48 m/min) for X/Y axes and 2,204.7 ipm (56 m/min) for the Z-axis.
Spindle Speed: Standard 12,000 RPM (high-torque version) or an optional 24,000 RPM.
Spindle Power: 17.4 HP (13 kW).
Spindle Taper: BT30.
Table and Pallet System
Pallet Configuration: Dual-pallet system with a 2.9-second change time.
Table Size: Two pallets, each measuring 25.6" x 14.8" (650 x 375 mm).
Max Workpiece Capacity: 441 lbs (200 kg) per pallet.
Max Workpiece Height: 11.8" (300 mm).
Automatic Tool Changer (ATC)
Changer Capacity: Standard 14-tool turret, with an optional 21-tool upgrade.
Tool Change Time: 1.45 seconds (Tool-to-Tool) and 2.22 seconds (Chip-to-Chip).
Max Tool Dimensions: 3.1" (80 mm) diameter and 7.9" (200 mm) length.
Machine Dimensions
Footprint: Approximately 63.8" W x 118.1" L x 100.4" H (1620 x 3000 x 2550 mm).
Machine Weight: Approximately 8,818.5 lbs (4,000 kg) to 11,500 lbs (5,216 kg)
