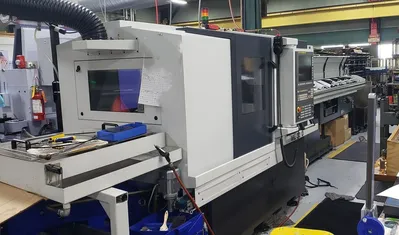

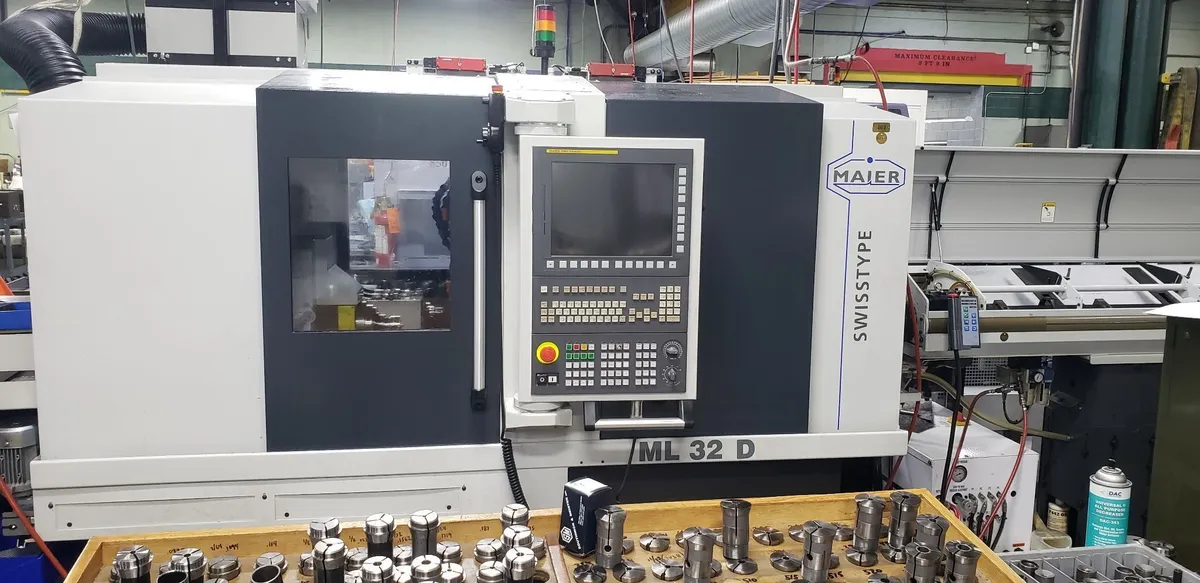

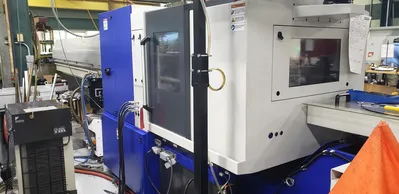

10-Axis Maier ML32DY CNC Swiss Type Automatic Screw Machine

Description

10-Axis Maier ML32DY CNC Swiss Type Automatic Screw Machine
Specifications (2017 Model)

Bar Capacity: 32 mm (approximately 1.26").
• Axis Count: 10 axes, including Y-axis and C-axis capability on both spindles.
• Main Spindle:
o Max Speed: 8,000 RPM.
o Motor: 7.3 HP.
o Indexing (C1): 0.001°.
• Sub Spindle:
o Max Speed: 8,000 RPM.
o Motor: 7.3 HP.
o Indexing (C2): 0.001°.
• Control System: Fanuc 31i-TB.

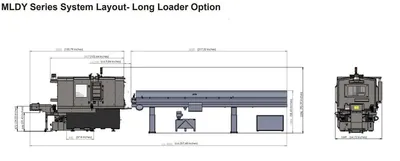

• Physical Footprint:
o Dimensions: 103" x 65" x 91".
o Weight: 8,500 lbs.
Axis Travel and Tooling
• Linear Travel:
o X1 / Z1 / Y1: 2.559" / 8.66" / 12.716".
o X2 / Z2 / Y2: 13.405" / 13.385" / 3.937".
o X3 / Z3: 14.173" / 7.48".

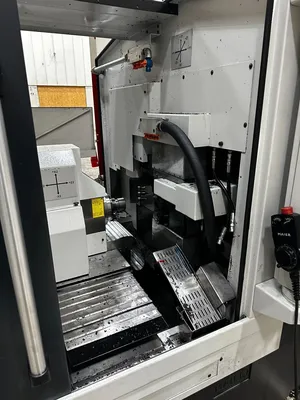

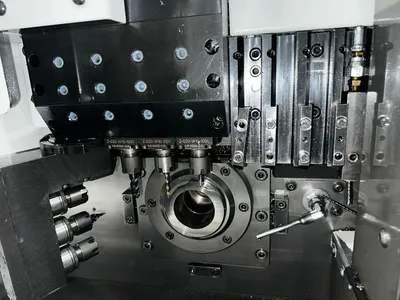

• Tooling: Features multiple live and static tooling positions to support off-center milling and drilling
