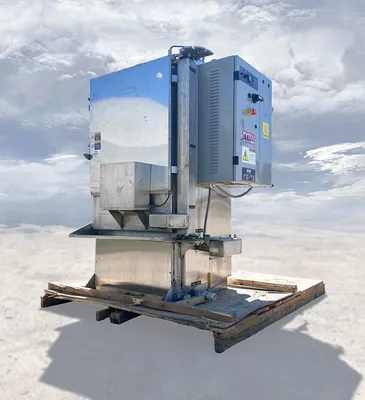

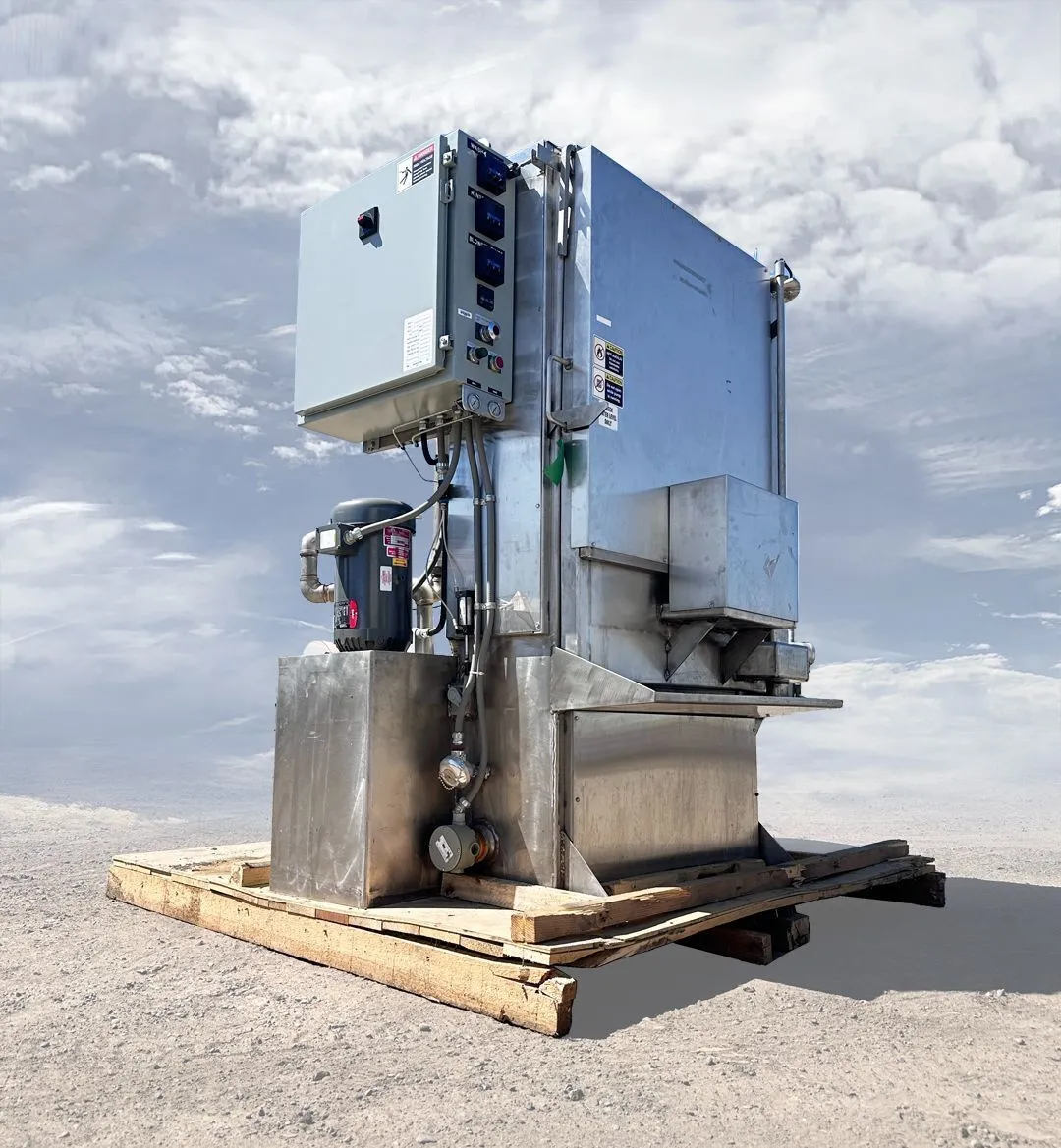

Stoelting CSW-123 Washer

Description

Stoelting CSW-123 Washer
SPECIFICATIONS
Mfg: Stoelting
Model: CSW-123
YOM: 2008 (Never Put into Service)
Overall Height: 83 Inches
Overall Width: 59 Inches
Overall Depth: 66 Inches
Turntable Diameter: 26 Inches
Working Height.: 40 Inches
Working Load Limit: 800 Pounds
Solution Capacity: Main Solution Tank: 70 U.S. Gallons
Pump Motor Size: Main Wash Pump: 5 H.P.
Nozzles Per Manifold: Main Wash Stage: 12
Rinse Stage: 8
Blow off Stage: 8
Pump/Flow Capacity: Main Wash Pump: 90 G.P.M. @ 50 P.S.I.
Turntable Motor Size: 1/15 H.P.
Electric Tank Heater Elements: 12 K.W. x 1 = 12 Total K.W.s
Electric Power Required: 415 Volts... 3 Phase... 50 Cycles.. 70 Amps
Fresh Water Inlet Size: 1/2 N.P.T.
Compressed Air Inlet Size: 1 1/2 N.P.T.
Main Tank Drain Size: 1 1/2 N.P.T.
Approximate Shipping Weight: 1,200 Pounds
Features:
Heavy Duty 304 S.S. Construction
Vertical Seal-less Pump
6 x 18 Wash Stage Baghouse Filter
Wiring Upgrade (includes sequential timers)
Digital Cycle Timers (Auto Sequencing)
Heated Fresh Water Rinse w/auto divert to drain
Single Cartridge Rinse Stage Filter
Shop Air Blow Off Cycle
Demisting Exhaust Blower
Auto Fill w/low water shut off
Special Parts Holder (Sample Parts Required)
Size: 26x40x800 Lbs.
Swinging Door Load
Insulated Cabinet
Digital Temperature Control
w/high temp alarm
S.S. Wash Nozzles
S.S. Chip Screens
Lower Spray Bar
Door Interlock Switch
Wash & Rinse Pressure Gauges
at control panel
Seismic Brackets (Spec's Required)
