30000 lb. Perfecto #RS30-7272, coil feed line, 72" W x .218" stock, 72" OD, 19"-24" ID, 3-leaf mandrel

Description

30000 lb. Perfecto #RS30-7272, coil feed line, 72" W x .218" stock, 72" OD, 19"-24" ID, 3-leaf mandrel, power lift & travel
Mfg: Perfecto Model: RS30-7272 / 55-72-7
YOM: 2000
Specifications
Coil weight capacity: 30000 pounds
Stock Width Capacity 72 inches
Max Stock Thickness Capacity At Full Width .218 inches
Minimum expansion range: 19 inches
Maximum expansion range: 24 inches
Coil O.D. capacity: 72 inches
Equipped With
Preliminary Specifications (Subject To Inspection):
Stock thickness capacity:
.218" x 72" Wide
.500" x 14" Wide

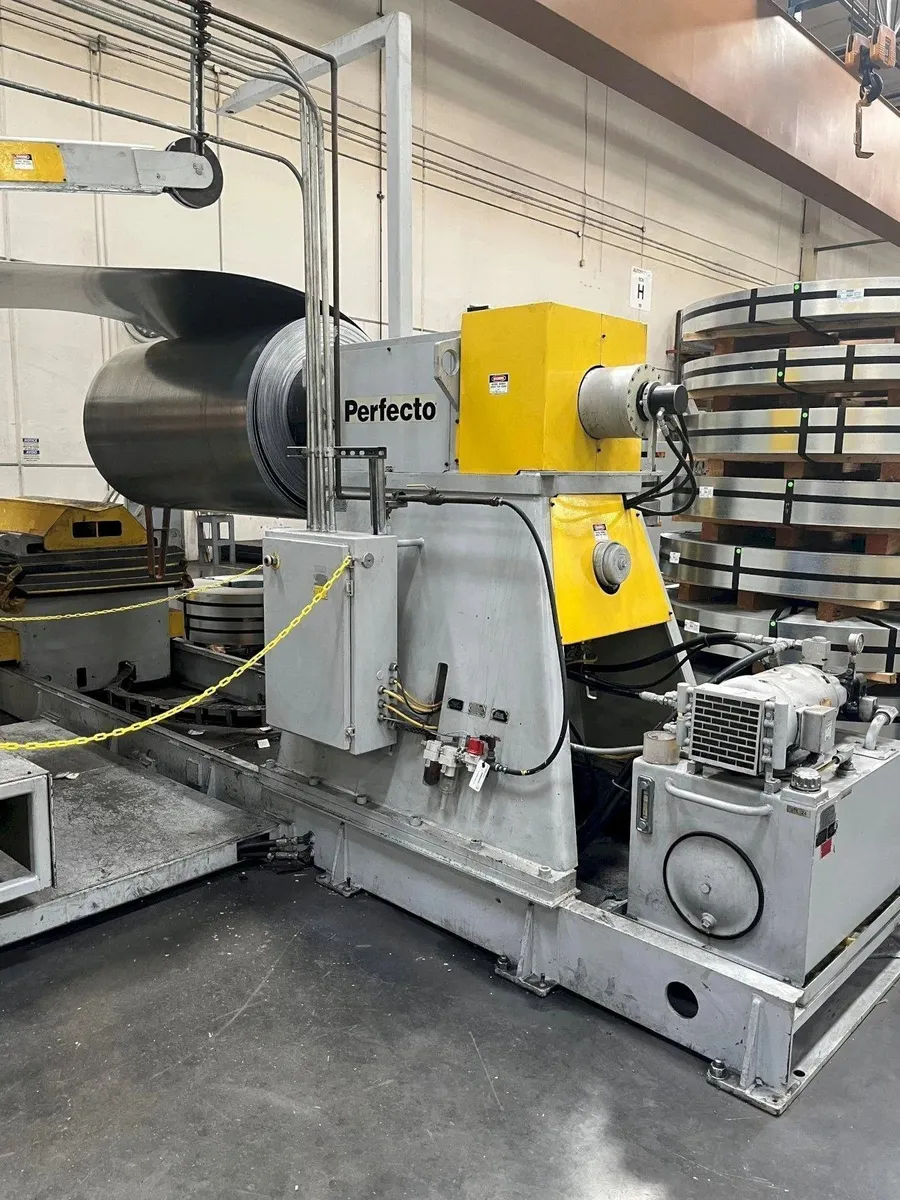

Perfecto Coil Reel Model No. RS30-7272
Three leaf mandrel with hydraulic expansion
Air brake for adjustable tensioning
Jog drive for threading
Traveling coil load car
Powered lift and travel

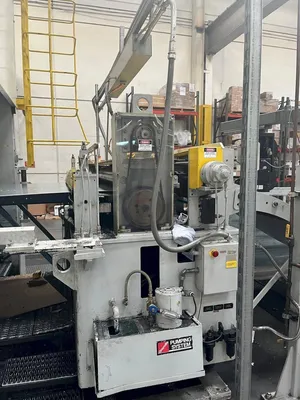

Perfecto Coil Straightener Model No. 55-72-7
Seven straightening rolls x 5.5" diameter
Motorized straightening roll adjustments
Back up support rollers on upper and lower straightening rolls
Entry and exit pinch rolls
Motorized edge guides
Coil hold down and peeler station
Automatic lubrication system

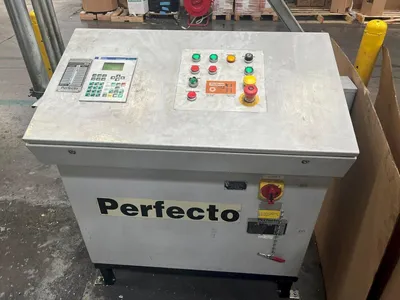

Operator's controls
Loop control

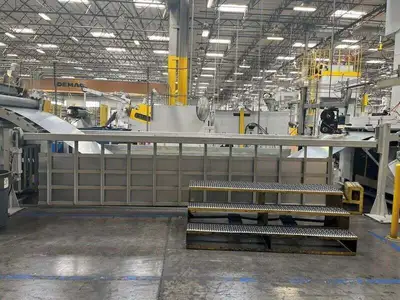

Perfecto Dual Sided Exit Threading Tables
Perfecto Servo Feed Model No 700-72
Piloting upper feed roll
Motorized stock width edge guides
Entry cascade loop support rollers
Anti Back Up Rolls
Cabinet base mounted
Motorized pass line adjustment
AC Servo controls
(2025) All new machine interconnection wiring, cables and conduit installed and included
(2025) New laser loop control installed and included
