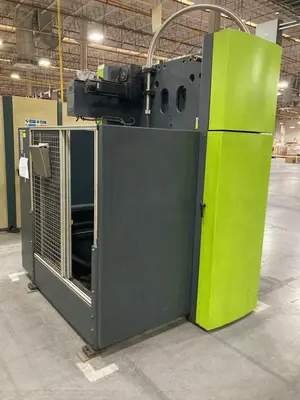

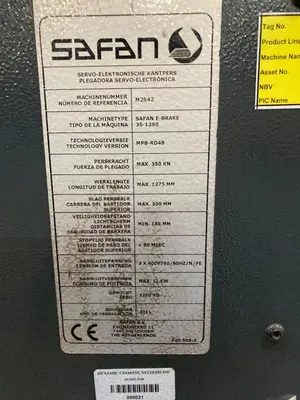

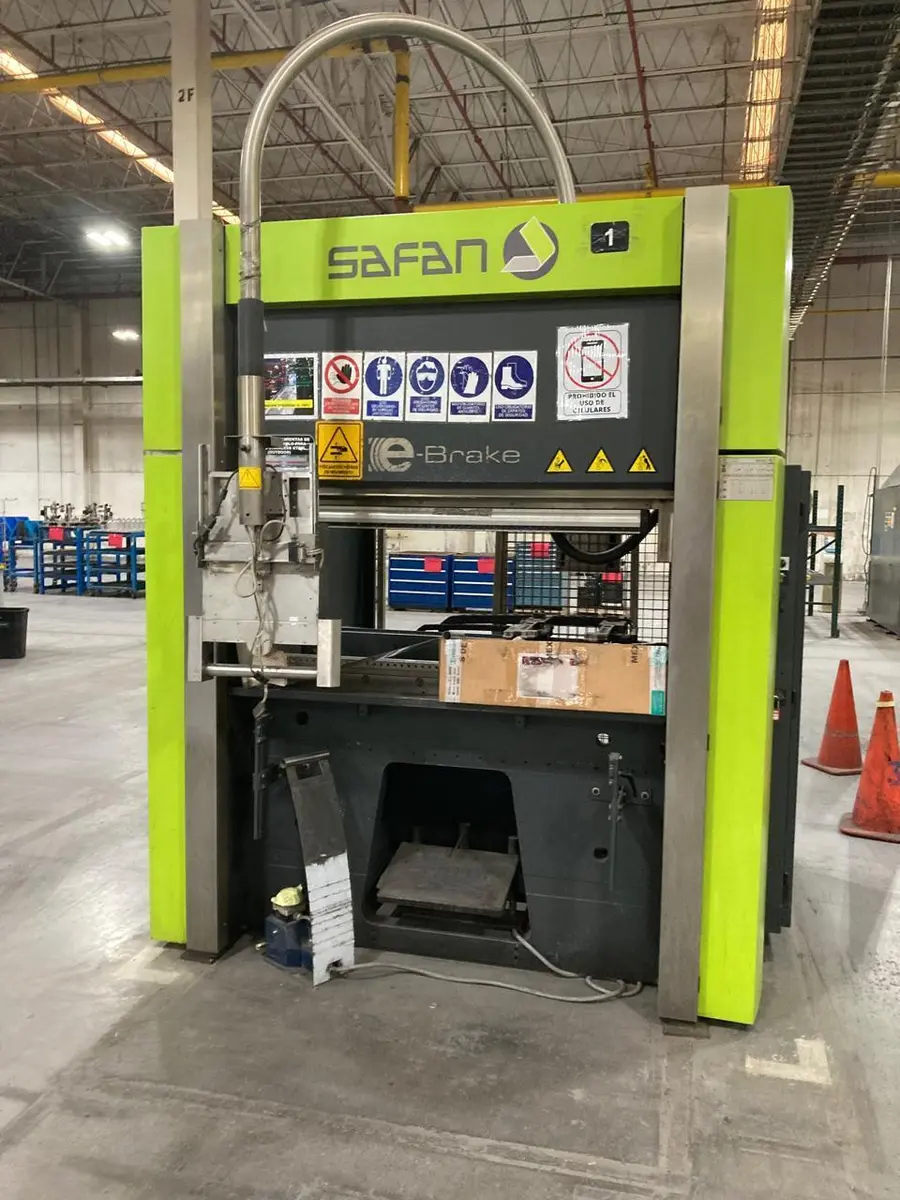

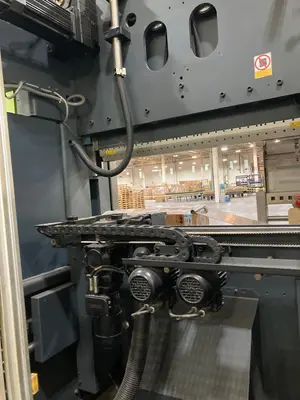

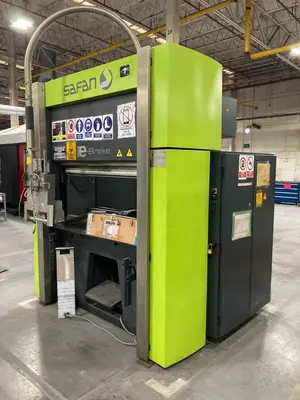

Servo electrical press brake model SafanDarley E-Brake 35-1250 Standard Max. tonnage kN 350 Max. working length mm 1250 Max. daylight Q, standard, (without upper tool adapter/table) mm 590 Max. daylight Q, as an option, (without upper tool adapter/table) mm 650 or 690 Max. stroke upper beam mm 300 Repeat accuracy upper beam mm +/- 0,01 Max. correction Y1-Y2 ; programmable mm +/- 2,50 Max. fast approach speed in basic configuration, acc. CE mm/sec 10 Max. fast approach speed with option light guard, or in APS bending cell, or without CE mm/sec 180 Max. bending speed in basic configuration, acc. CE mm/sec 10 Max. bending speed, with option light guard, or in APS bending cell, or without CE mm/sec 20 Return speed mm/sec 180 Max. back gauge speed mm/sec 350 Max. back gauge travel distance mm 550 Max. reach back gauge (second stop) mm 570 Max. reach back gauge (third stop) mm 1000 Repeatability; back gauge mm +/- 0,02 R-axis, reach mm 150 Repeatability R-axis mm +/- 0,10 Speed R-axis mm/sec 100 Weight kg 3250 Connected load kW 11 Flat foundation Machine length mm 2230 Machine width mm 1775 Machine height during transport; Q=590mm, 650mm, 690mm mm 2510 Machine height; Q=590mm, 650mm, 690mm mm 3120 Main supply voltage 3/N/PE 50Hz – 400/230V
