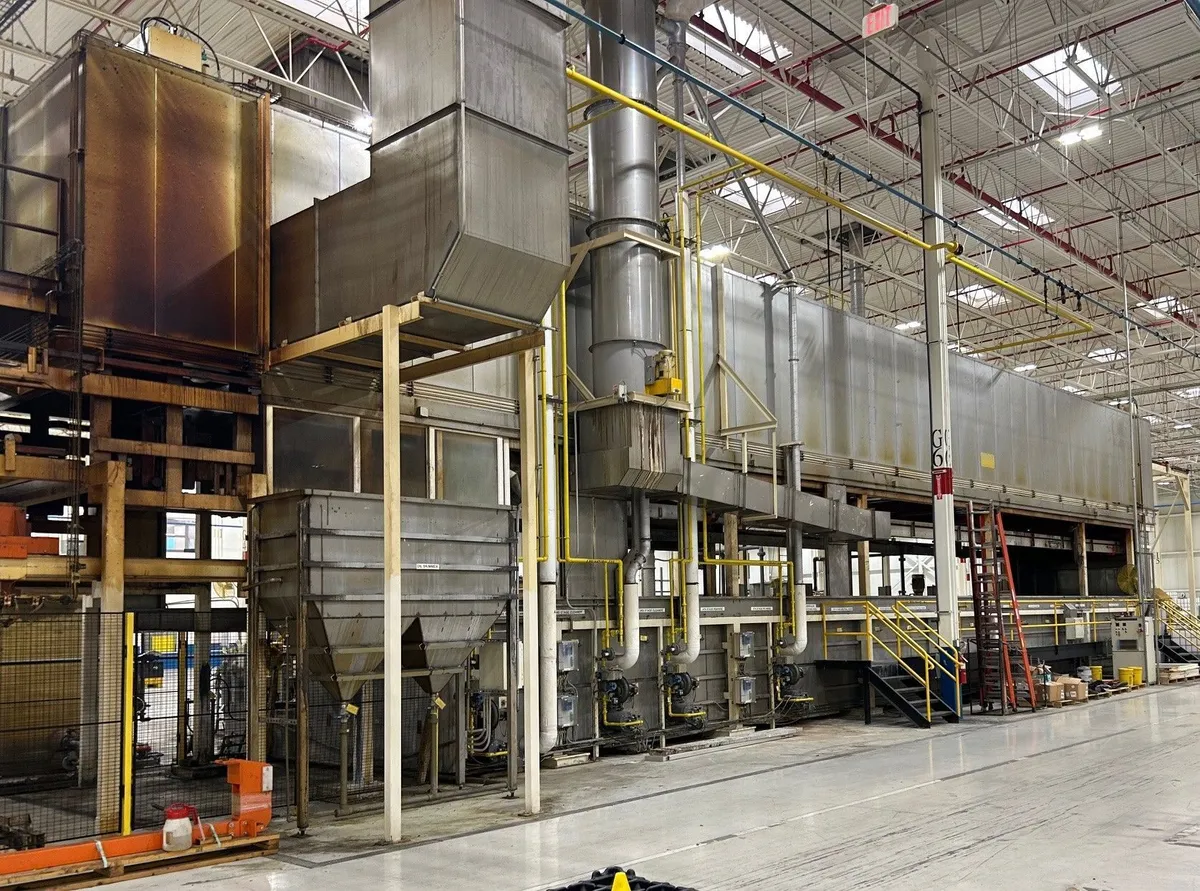

18-Stage TTX SlideRail Square Transfer E-Coat Line

Description

18-Stage TTX SlideRail Square Transfer E-Coat Line
Mfg: TTX
Model: Square Rail Square Transfer
YOM: 2018
Stages: (Tank Size: 4'-0" W x 5'0" Deep x 11'-0" L)
1st Stage: Alkaline Spray Cleaner - 140* - 740 Gallon (SS304) Tank
2nd Stage: Alkaline Immersion - Cleaner - 140* - 1840 Gallon (SS304) Tank
3rd Stage: Alkaline Immersion - Cleaner - 140* - 1780 Gallon (SS304) Tank
4th Stage: RO Rinse Immersion -- 1630 Gallon (SS304) Tank
5th Stage: RO Rinse Immersion -- 1630 Gallon (SS304) Tank
6th Stage: Acid Clean Immersion -- 1670 Gallon (SS316) Tank
7th Stage: Neutral Rinse Immersion -- 1700 Gallon (SS316) Tank
8th Stage: RO Rinse Immersion -- 1730 Gallon (SS304) Tank
9th Stage: Conditioner Rinse Immersion - 1670 Gallon (SS304) Tank
10th Stage: Zinc Phosphate Immersion - 1670 Gallon (SS304) Tank
11th Stage: RO Rinse Immersion -- 1700 Gallon (SS304) Tank
12th Stage: NC Seal Rinse Immersion - 1700 Gallon (SS304) Tank
13th Stage: Polished RO Rinse Immersion - 1730 Gallon (SS304) Tank
14th Stage: Polished RO Rinse Immersion - 1680 Gallon (SS304) Tank
15th Stage: E-Coat - 2000 Gallon (SS304) Tank
16th Stage: Permeate Immersion - 1670 Gallon (SS304) Tank
17th Stage: Permeate Immersion - 1770 Gallon (SS304) Tank
18th Stage: Permeate Immersion - 1800 Gallon (SS304) Tank
Equipment Includes:
Cleaner Holding Tank 2253 Gallons, RO Pass 1 Holding Tank (2100 Gallons), RO Pass 2 Holding Tank (2100 Gallons), Iron Removal Rinse Water Storage Tank (1500 Gallons), Iron Removal Regen Waste Tank (3000 Gallons), Zinc Phosphate Holding Tank (2616 Gallons),
Clarifier, Zinc Filter Press, Carrier Chiller
Oven Information:
OVEN PANELS: 6" THICK CONSTRUCTION 6" THICK CONSTRUCTION
ACTIVE DEHYDRATION OVEN: 4 STAGES @ 3 MIN. EA. (12.0 MIN. TOTAL) 4 STAGES @ 3 MIN. EA. (12.0 MIN. TOTAL)
ACTIVE CURE OVEN.: 11 STAGES @ 3 MIN. EA. (33.0 MIN. TOTAL)
COOLING TUNNEL: 5 STAGES @ 3 MIN. EA. (15.0 MIN. TOTAL) 5 STAGES @ 3 MIN. EA. (15.0 MIN. TOTAL) DEHYDRATION OVEN BURNER: 1,00,000 BTU/HR (1,000,000 BTU/FT) 1,00,000 BTU/HR (1,000,000 BTU/FT) 0.5 HP 172 SCFM BLOWER 480/3/60 0.5 HP 172 SCFM BLOWER 480/3/60
CURE OVEN BURNER: 2.0 FT MAXON APX (1) 2.0 FT MAXON APX 2,00,000 BTU/HR (1,000,000 BTU/FT) 2,00,000 BTU/HR (1,000,000 BTU/FT) 1.0 HP 345 SCFM BLOWER 480/3/60 1.0 HP 345 SCFM BLOWER 480/3/60
OVEN TEMPERATURE: ZONE 1: 230 F NOMINAL/ 250 F MAX. ZONE 1: 230° F NOMINAL/ 250°F MAX.
ZONE 2: 380° F NOMINAL/ 450°F MAXTOTAL OVEN VOLUME 10,103 CU. FT 10,103 CU. FT TOTAL
OVEN PURGE TIME 22 MIN. TIMER @ 1837 SCFM 22 MIN. TIMER @ 1837 SCFM 2894 ACFM @ 375 2894 ACFM @ 375°F
Auxillary Equipment: E-Coat Rectifier, Anodes (16 Tubural Anodes, Chiller (Carrier 16.1 Tons), Hydraulic Unit, Lights, Water Heater, Burners: (4) Maxon Tube-O-Therm Burners - Fans: Pre-Treat Exhaust Fan, Dehydration Oven Recirc Blower, Cure Oven Recirc Blower, Oven Exhaust Fan, Cooling Tunnel Exhaust Fan, Cooling Tunnel Supply Fan
ALL SPECIFICATIONS SUBJECT TO BUYER VERIFICATION
ADDITIONAL INFORMATION AVAILABLE UPON REQUEST
