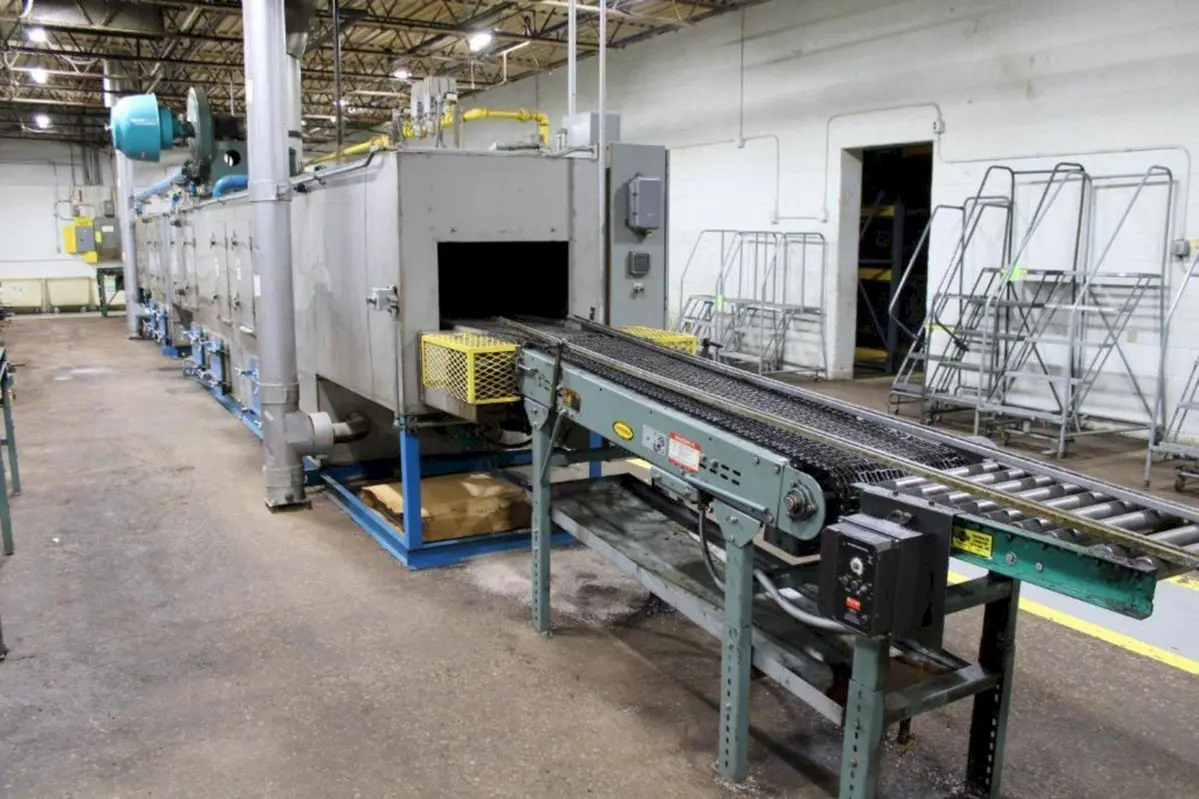

4-Stage Continental Equipment Corp Gas Heat Stainless Steel Conveyor Washer w/ 18" X 15" H Opening

Description

4-Stage Continental Equipment Corp Gas Heat Stainless Steel Conveyor Washer w/ 18" X 15" H Opening
Mfg: Continental Equipment Corp
Yom: 2010
Specifications:
BELT WIDTH 18"
WORK OPENING 15" HIGH
BELT SPEED 2 TO 8 FPM, VARIABLE SPEED
BELT CAPACITY 60 LBS / FT
LOAD HEIGHT 3'6"
CHIP BASKETS 6
CONTROL 7 DAY TIMER
4-STAGE WASH, PRE RINSE, RINSE, BLOW OFF
(DATA AT 6 FPM DESIGN SPEED)
==========================
WASH TEMP 150 DEGREES FARENHEIGHT
WASH TIME 120 SECONDS
WASH TANK 1,000 GALLON
WASH HEAT 830,000 BTU / HR
WASH NOZZLES 90 @4.0 GPM
WASH PUMP MOTOR 20 HP
==========================
PRE RINSE TEMP 150 DEGREES FARENHEIGHT
PRE RINSE TIME 5 SECONDS
PRE RINSE NOZZLES 3 @ 0.87 GPM
==========================
RINSE TEMP 150 DEGREES FARENHEIGHT
RINSE TIME 60 SECONDS
RINSE TANK 500 GALLON
RINSE HEAT 440,000 BTU / HR
RINSE NOZZLES 48 @ 3.5 GPM
RINSE PUMP MOTOR 7.5 HP
===========================
BLOW OFF TEMPERATURE AMBIENT
BLOW OFF TIME 30 SECONDS
BLOW OFF FAN 600 CFM
BLOW OFF MOTOR 7.5 HP
BLOW OFF KNIVE AFTER WASH 1 TOP
BLOW OFF EXIT KNIVES 2 TOP & 1 BOTTOM
============================
OIL SEPERATOR #1 - SUPERATOR #86-320-005C
OIL SEPERATOR #2 - SUPERATOR #89/050
============================
EXHAUST FAN 1.5 HP
============================
POWER 73 FLA
============================
STAINLESS MATERIALS:
TANK, HOUSING, CHIP BASKETS, IMMERSION TUBE, INTERIOR PIPING, SPRAY PIPES, SPRAY NOZZLES,
DRAIN VALVES, CONVEYOR, CONVEYOR TRACK, INTERIOR BLOW OFF DUCT, AIR KNIVES
============================
PAINTED CARBON STEEL - WASHER EXTERIOR
