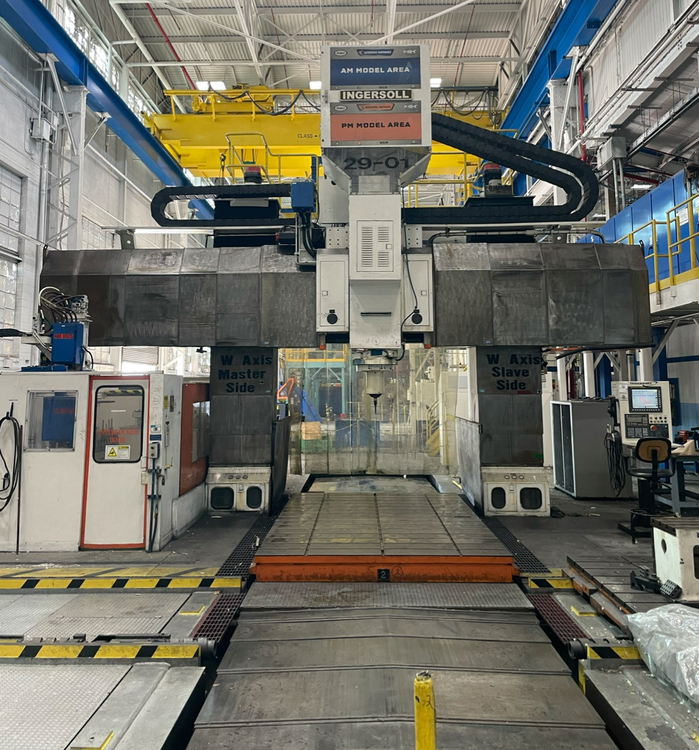

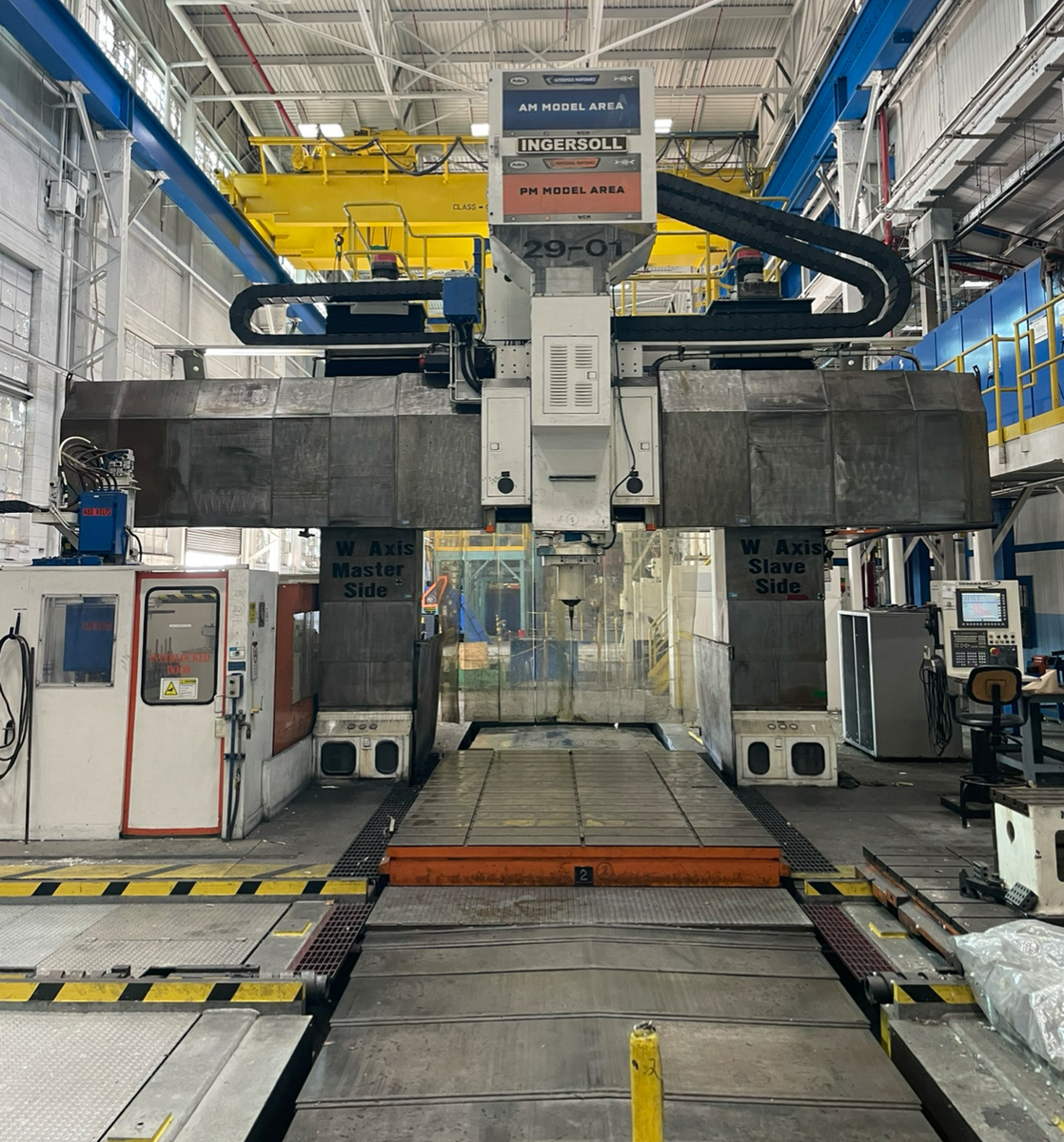

Ingersoll MasterMill 5-Axis Single Head Vertical Spindle MasterMill Machining Center w/ Adjustable Rail

Ingersoll MasterMill 5-Axis Single Head, Vertical Spindle, Adjustable Rail, MasterMill Machining Center, Includes a Tool Changer, SU Changer, & Pallet Changer Systems
MFG: Ingersoll
Model: MasterMill
YOM: 1996 with 2014 Upgrade
Machine Capacity:
Width Btwn Column Way Covers: 118.1”
Height From Pallet to To Ram Face: 108.3”
Pallet Width: 98.4”
Pallet Length: 157.5”
Axes Travels
X-Axis – 236.2”
Y-Axis - 157.5”
Z-Axis – 39.4”
W-Axis – 59.0”
B-Axis - 360* Degree Continuous & Reversible Rotation
C-Axis- +/- 180* Degree
Axes Feedrates
X-Axis Feedrate 0-236 (IPM) Traverse 590.55 (IPM)
Y-Axis Feedrate 0-236 (IPM) Traverse 590.55 (IPM)
Z-Axis Feedrate 0-236 (IPM) Traverse 393.7 (IPM)
W-Axis Feedrate 0-118 (IPM) Traverse 157.48 (IPM)
B-Axis Feedrate 0-4 RPM Traverse 6 RPM
C-Axis Feedrate 0-8 RPM) Traverse 10 RPM Cont. 360* DEG
Fanuc 30i B Control
All Specifications Subject to Buyer's Verification
