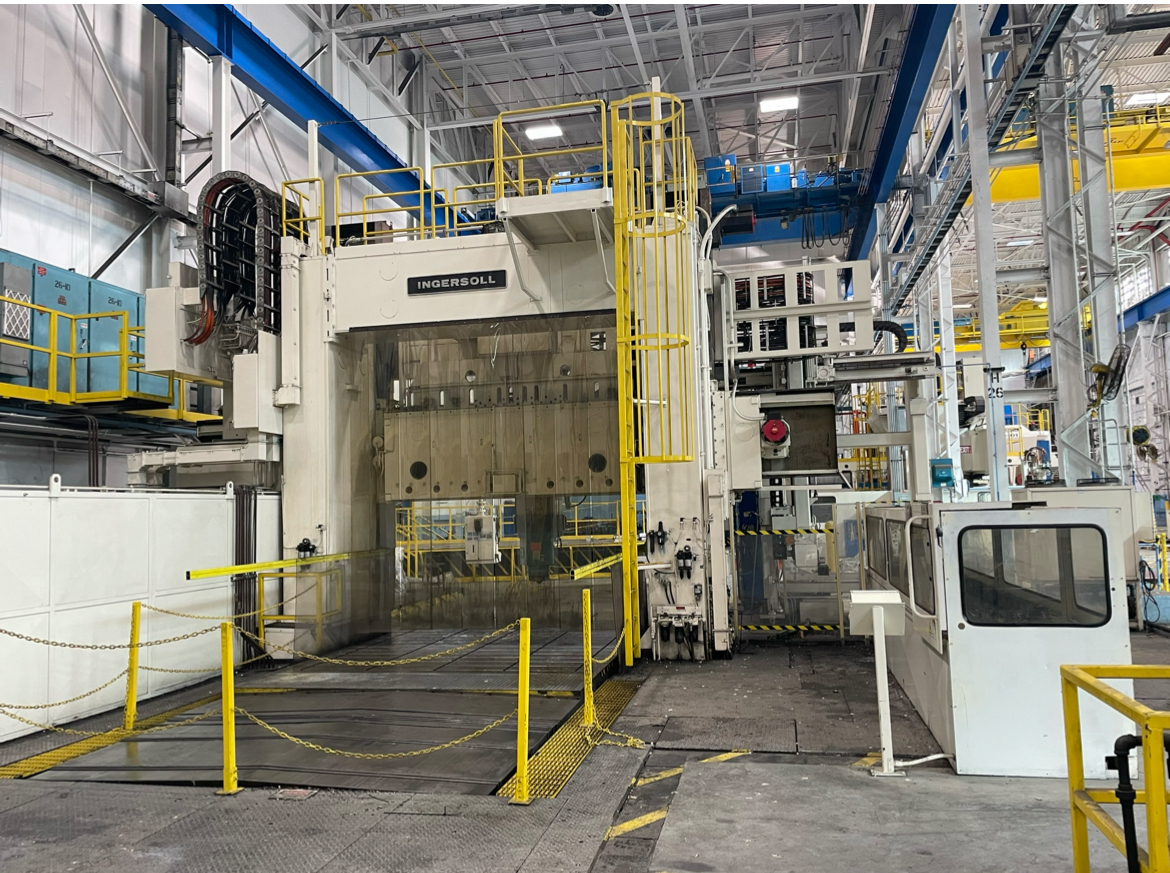

6-Axis Ingersoll Masterhead Machining Center

Axis Travels
X-Axis (Table) Min. -5675mm Max. 25mm Home Position: 0
Y-Axis (Head) Min. -25mm Max. 5856mm Home Position: 0
Z-Axis (Ram) Min. -975 Max. 25 Home Position: 0
W-Axis (Rail) Min. 815.7mm Max. 3252.7mm Home Position: 3227.7
B-Axis (Nutator) Min. -181* Max. 181* Home Position: 0
C-Axis (Drum) Min. 0* Max. 360* (Rollover) Home Position: 0

Axes Feedrates
X-Axis Feedrate 0-5000 (mmpm) Traverse 12000 (mmpm)
Y-Axis Feedrate 0-5000 (mmpm) Traverse 8000 (mmpm)
Z-Axis Feedrate 0-5000 (mmpm) Traverse 5000 (mmpm)
W-Axis Feedrate 0-2000 (mmpm) Traverse 2000 (mmpm)
B-Axis Feedrate 0-2160 DPM (6 RPM) Traverse 0-2160 DPM (6 RPM)
C-Axis Feedrate 0-2880 DPM (8 RPM) Traverse 0-2880 DPM (8 RPM)

All Specifications Subject to Buyer's Verification
