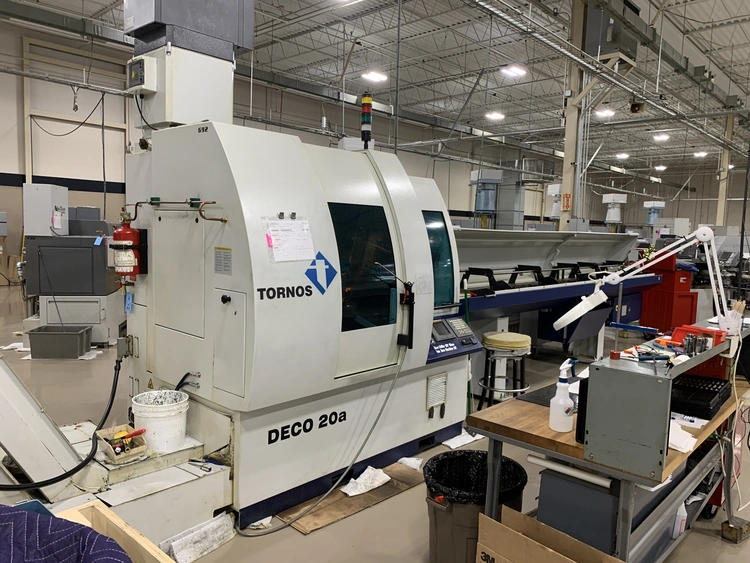

Tornos CNC Turning Center, Model: Deco20a

Description

Tornos CNC Turning Center, Model: Deco20a,
Mfg: Tornos
Model: Deco 20a
YOM: (2011),
Parallel Control PNC-DECO
Capacity: 20mm / 10 Axes
Sliding Headstock 10000 RPM S1 (Z1), Clamping Collet Schaublin F25, Position Spindle Stop S1 (0,1 Degree)
Tool Systems (X1-Y1 / X2-Y2) 2 Independent Slides with Cross Slideways, Featuring 2x5 Positions, S2 8000 RPM Max Speed,
End Working Attachment - (X3-Z3) Carriage with Cross Slides 4 Positions, Clamping Collet Schaublin F25
Counter-Operations: Post for Counter-Operations with 7 Positions (4 End and 3 Cross)
Part Conveyance: Workpiece Evacuation By Manipulator
Sundry: Unit for Conditioning of Compressed Air, Coolant Pump with Variable Output
Control: Fanuc 16i-TB, 10 Axis PNC, Programming Software TB-DECO
Independent Opposite Spindle S4 (X4-Z4-Y4) 3 Independent Slideways, Opposite Spindle 10000 RPM
Equipped with:
Fanuc Control: PNC Deco, LNS MF2 Chip Conveyor, Tornos SBF532 Bar Feeder,
LNS High Pressure Coolant, Poly Science Chiller unit, SEI Filtration Mist System

All Specifications Subject to Verification by Buyer
