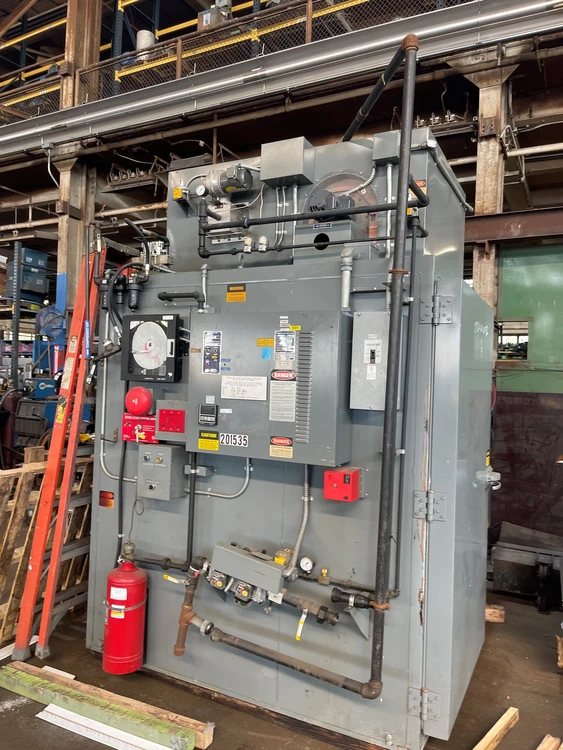

Steelman Bake Oven

Mfg: Steelman Bake Oven

Model: 666GTC0BVLD

Type: Convection

BTU: 300000 Natural Gas

Oven Volume: 216 Cu. Ft.

Fresh Air Purge Interval: 2 Min.

Max. Gallons of Solvent Per Batch: 0.51

Fresh Purge Volume: 500 FM (70*)

Max. Operating Temperatue: 500* F

Oven Interior: 72" x 72" x 72"

Circulation: Volume (SCFM): 3,200

Volume (Changes/Min): 22.2

Gas Line Size: 1-1/4"

Gas Pressure Needs: 7" to 28" of w.c.

Temperature Control: Partlow

Exhaust:

Volume (SCFM): 500

Outlet Adapter: 500

Purge Time (Min.): 1.5

Equipped with: Track Cart, Dry Chemical Fire Suppression, Vertical Lift Door
