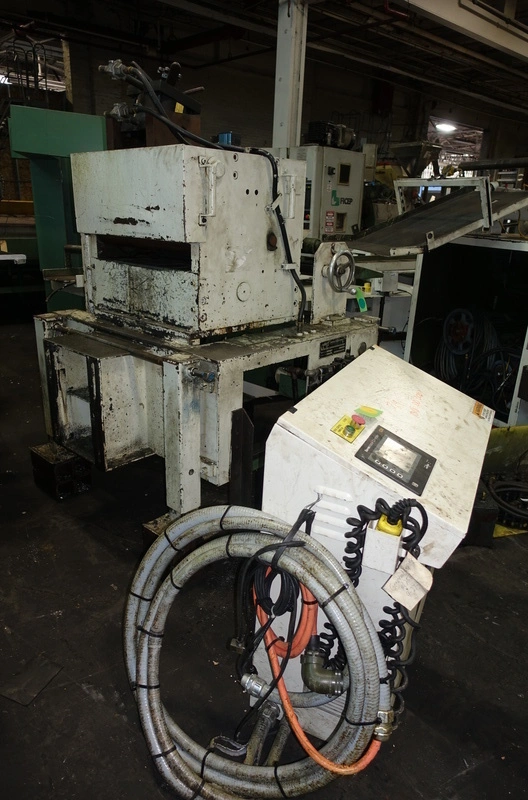

24'' COE Feedline - 15,000# Capacity

24'' COE Feedline - 15,000# Capacity

Inventory #: 501318

24'' COE Feedline - 15,00# Capacity

MFG: COE PRESS EQUIPMENT

FEEDER:

Model: CPRF-824

24" wide capacity

.437" Mild steel capable at full width

8" dia. x 12" face Feed Roll

8" OD Cylinder

48" Pass Line(can be lowered 8.5")

Shipping Dim: 72Lx58Wx78H

STRAIGHTENER:

Model: CPPS-500-24-7

24" wide capacity

.437" Mild steel capable at full width

5" dia. Work Rolls x 25 7/8" Face

3 over 4 Configuration

7" dia. Entry & Exit Driven Pinch Rolls

8.5" Pinch Roll Cylinders

Shipping Dim: 125Lx80Wx68H

CRADLE:

Model: CPCO-15024

15,000# Weight Capacity

24" Max. Coil Width

.375" mild Stell Capable at full width

Rides on 6" dia. Rolls

3/4" Adjustable Side Plates

Emerson Motor: 30HP, 3Ph,

60Hz,1735RPM, 230/460V., 66.4/33.2amp;

50Hz, 1400RPM, 380V., 41.8amp

Shipping Dim: 150Lx72Wx76H

CRADLE LOOP:

Shipping Dim: 108Lx20Wx18H

ELECTRICS:

Upgraded COE SERVO MASTER 6 "Touch" Controler 2011

Servo Pack Model: SGDV-370DE 1A002000 Yaskawa Electric Corp.

3ph, 380-480V., 50/60Hz, 43.4 Amp

Cont: DC24V.

Control Option Card MP 2600iec

Model: SGDV-OCC 02A

Console/Enclosure

Shipping Dim: 50Lx36Wx36H
