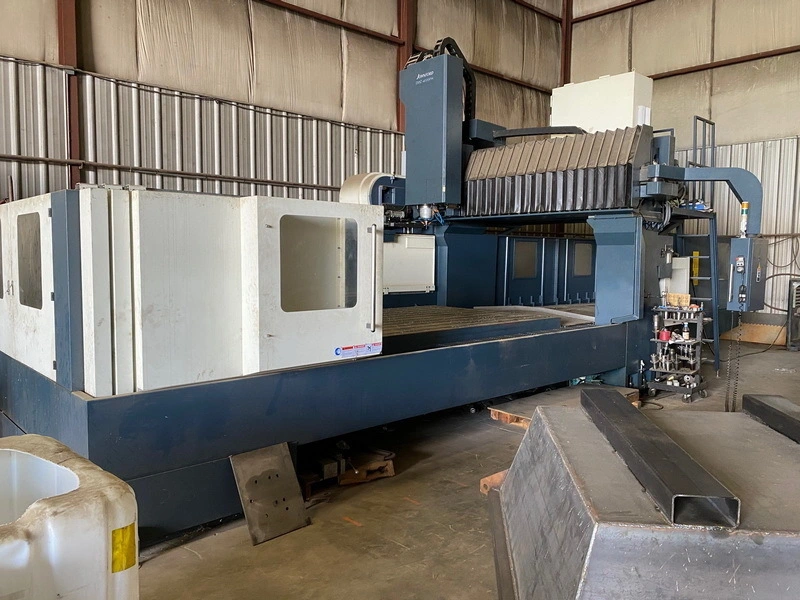

Johnford Double Column Machining Center, Model: DMC-4100PH

Johnford Double Column Machining Center, Model: DMC-4100PH

YOM:2013

Table Size: 165.3” x 80.7”

X-Travel: 161.4”

Y-Travel: 90.5”

Z-Travel: 48”

Spindle Nose to Table: 5.9” - 47.8”

Tooling Taper Type: Cat 50

Spindle Bearing: 3.5”

X-Y-Z Rapid Traverse: 12x12x12m/min

X-Y-Z Cutting Feed: 1-10000mm/min

Ask. Pockets Max. Tool Dia.: 5”

ATC: 40 Tools

Max. Tool Diameter: 7.8”

Max. Tool Length: 15.7”

Max. Tool Weight: 33 lbs.

Table Load Capacity: 22,000 lbs.

Dimensions: 500.4” L x 219.7” W x 176.6” H

Equipped with:

Coolant System

Oil Mist Coolant System

Heat Exchanger

Full Enclosure

Chip Conveyor

Rigid Tapping

Spindle Oil Cooler

Tool Presetter

High Pressure Coolant thru Tool Tip & thru Spindle

Cat 50, Probe

Linear Scales

Fagor Control
