13000 LB Banning Hammer Line

BANNING HAMMER CELL: The cell was used to forge I beams, Gears, Knuckles and Extension Beams

RAPID Gas Furnace

1200°C

Total heating capacity 10,000, 000 MBTU/hr 10 burners)

60 to 70 pieces per hour

NATIONAL 10 Rolling Machine

TN 10

Stock size: 5”/ 125 mm

Maximum rolling length: 40” 1,016 mm

Floor space Wide: 10’ 2” 3,100 mm

Floor space length: 11’4” 3,450 mm

Machine height: 8’ 6.3” 2,600 mm

Machine total weight: 55,066lbs 25,000 kg

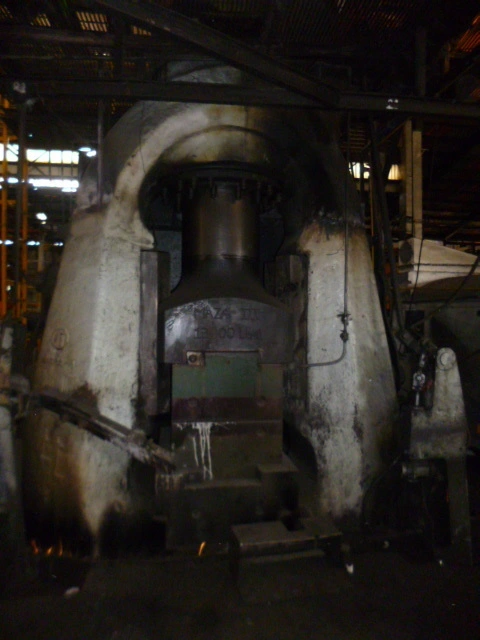

GOAS 13,00 Banning Hammer freefall/compressed air acceleration

Blow capacity: 13,000 kgm

Capacity of continuous blows/minute : 75

Blow high with standard die: 890 mm

Hammer total weight: 130,000 kg

Main frame total weight: 118,000 kg

Ram weight: 7,300 kg

Die maximum weight: 2,500 kg

Hammer total height: 7,270 mm

Hammer general dimensions: 3,500 x 2,200 mm

Height above the floor; 4,860 mm

Distance between upgrades: 850 mm

Air consumption: 1.3 m³/ stroke
