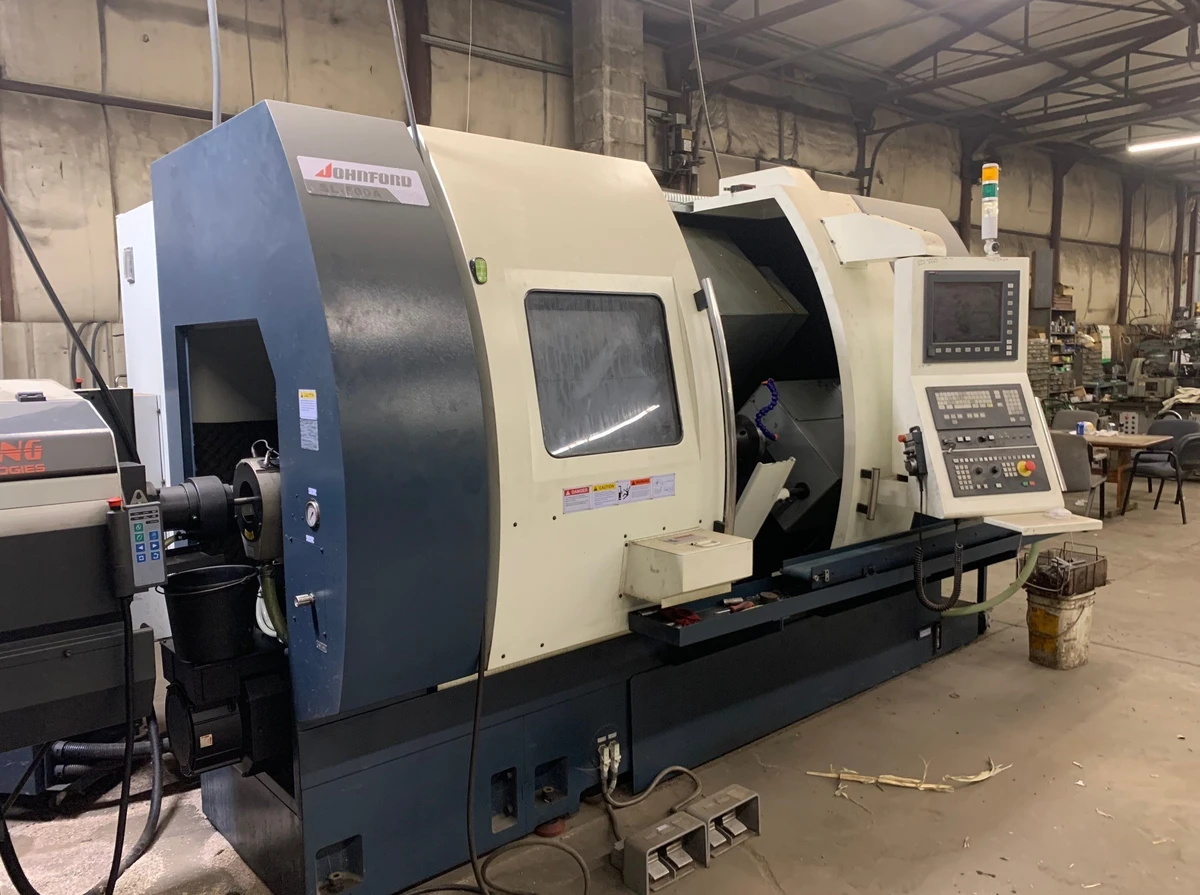

Johnford SL 500A 2S+C+Y CNC Lathe (2018)

Johnford SL 500A 2S+C+Y CNC Lathe (2018)

Model: SL 500A 2S+C+Y

Swing over Bed: 580mm

Swing over Cross Slide: 370mm

Chuck Size: 12"

Bar Capacity: 102 mm

Spindle Nose: A2-11

Spindle Bore: 115 mm

Spindle Speed Step(s): One Speed

Spindle Speed Range: 2800 Rpm

Spindle Motor: 28 / 42 Kw

Spindle Bearing Diameter: 160 mm

No. of Tools: 12

Cross Travel (Y-Axis) +/-50mm (Turret)

Cross Travel (X-Axis) +/-225mm (Turret)

Longitudinal Travel (Z-Axis) 470 mm (Turret)

Rapid Transverse X: 15m/min, Y:10m/min, Z: 18m/min (Turret)

Sub-Spindle Chuck Size: 8"

Sub-Spindle Bar Size: 51mm

Sub-Spindle Nose: A2-6

Sub-Spindle Bore: 66mm

Sub-Spindle Speed Step(s): One Speed

Sub-Spindle Motor: 12 /18.5 Kw

Sub-Spindle Bearing Diameter: 100mm

Servo Motor (X-Axis): 7.4 Kw (for Y-Axis)

Servo Motor (Y-Axis): 3.6 Kw

Servo Motor (Z/W-Axis): 7.4 Kw

12-Station Live Tooling "C" Axis Spindle BMT-65

Y-Axis Function +/- 2" Travel

Sub Spindle 2" Bar. 4500 Rpm, 15 HP, 8" Chuck

Parts Catcher, Parts Conveyor, Manual Swing Down Tool Setter, Barfeed Interface, Chuck Air Blast, 1 Axial Live Tool Heads (BMT-65), 1 Radal Live Tool Heads (BMT-65), Royal Collet Setup (Main & Sub-Spindle & Quick Change Tool, Tracer 65 80 12' Barfeeder
