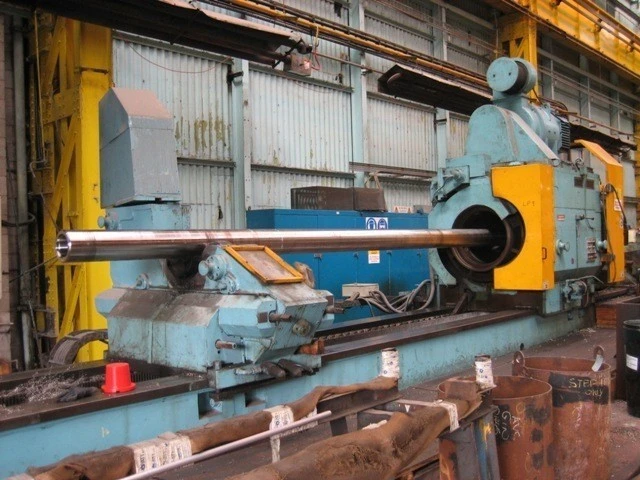

72" X 528" CRAWFORD SWIFT HOLLOW SPINDLE CNC LATHE

72" X 528" CRAWFORD SWIFT HOLLOW SPINDLE CNC LATHE

Factory ReMfg. 1983 With G.E. 1050 Or New Control Is Optional

72" Swing Over Bed

25" Spindle Bore

528" Max. Work Piece Length On Steadys

742"Total Bed Length

No Tailstock (Optional)

31' X- Cross Slide Travel

67" Z-Carriage Travel, Can Be Increased

Sauter Vertical CNC 23.6†Diameter Turret, 6-Tool, 12-Position

Round Turret, Holds 1.5†Square Tools (Optional)

68†Diameter 4-Jaw Independent Chuck

12 To 400 Infinitely Variable RPM Spindle Speeds

80 Ton Weight Capacity On Steady Rest’s

Floor Space: 780" x 114" x 153" Ht.

Weight: 120,000 Lbs.

Complete With 150 HP 200-500V/60/3 Main Drive Motor, Metal

Telescopic Way Covers On X And Z Axis, Two Heavy Duty Steady

With 23.6" Capacity, Movable Headstock With Positive

Clamping Every 4.33", Movable CNC Slide, Headstock And Slide

Can Be Positioned As Required Along Bed Length.

Excellent Condition
