Okuma Macturn 250W 5-Axis CNC Turning Center

Okuma Macturn 250W 5-Axis CNC Turning Center ( 2 Units Completely Rebuilt in 2015)

Swing Over...............................: 20.87"

Max Machining Diameter...................: 21.65"

Max. Turning Diameter - Upper............: 21.65"

Max. Turning Diameter - Lower............: 9.06"

Length Between Spindle Noses.............: 56.69"

X-Axis Travel - Upper....................: 18.7"

Y-Axis Travel - Lower....................: 6.3"

Z-Axis Travel - Upper....................: 46.06"

Z-Axis Travel - Lower....................: 45.47"

Y-Axis Travel............................: 6.3"

Z-Axis Travel............................: 39.37"

C-Axis Rotation..........................: 0.001 DEG

Main Spindle Nose........................: A2-8

Main Spindle Bore........................: 2.44"

Main Spindle Speeds......................: 5000 RPM

Main Spindle Motor.......................: 30HP / 20HP

Main Spindle Indexing....................: 0.001 DEG

Sub-Spindle Nose.........................: A2-6

Sub-Spindle Speeds.......................: 6000 RPM

Sub-Spindle Motor........................: 15 HP / 10 HP

Sub -Spindle Indexing....................: 0.001 Deg

Number of Tools..........................: 90 ATC

Tool Taper...............................: HSK63

Equipped With:

(2) Units Available -- Both Units Completely rebuilt in 2015 -

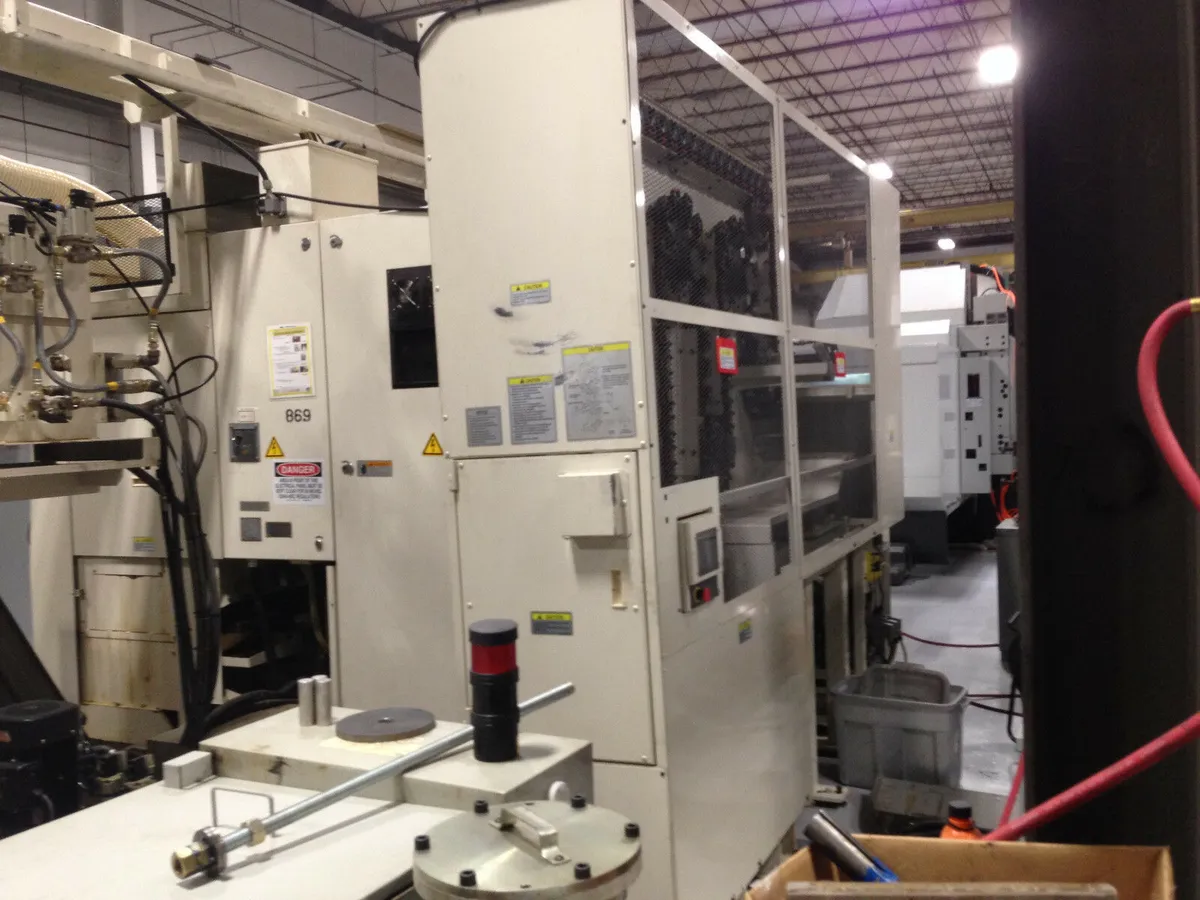

In Plant & Under-power
