7-STAGE DEYCO / HENKLE AUTODEPOSITION COATING LINE

Line Type: 7-Stage Immersion Process:

Mfg: Deyco, Inc./Henkle

YOM: 2007/2008

Cleaning Station(s) Spray Stage(s):

Stage 1 - Sprinkler Cleaning (Alkali Cleaner 2814) – Tank Capacity 1.300 Gallons

Stage 2 - Immersion Cleaning (Alkali Cleaner 2819) - Tank Capacity 8,100 Gallons

Stage 3 - Sprinkler Rinse (Water)

• Pre-Rinse

• Sprinkle Rinse – Tank Capacity 1,300 Gallons

• Post-Rinse

Immersion/Dipping Station(s):

Stage 4 – RO Tank (Immersion Rinse/Water Reverse Osmosis)

• Dip Rinse – Tank Capacity 6,200 Gallons

• Post Rinse – Virgin RO H2O

Stage 5 – DIP Tank (Auto Deposit ACC 866, Bonderite 866/Activato, Additive 24) – Tank Capacity: 7,730 Gallons

Stage 6 – Water Rinse RO by (Immersion Water)

• Misting RO Water

• DIP Water Rinse – Tank Capacity: 5,130 Gallons

• Misting RO Water

Stage 7 - Reaction Rinse RR 3416 by Immersion

• DIP Rinse – Tank Capacity 5,130 Gallons

• Misting RO Water

Stage 8 – Oven Cure

Also Equipped with:

• IEX Unit

• Curing Oven

• Reverse Osmosis System

• Miscellaneous Laboratory Equipment

Furnace/Oven Dimensions:

1) 21’W x 51L’ x 10’H (Exterior Dimensions)

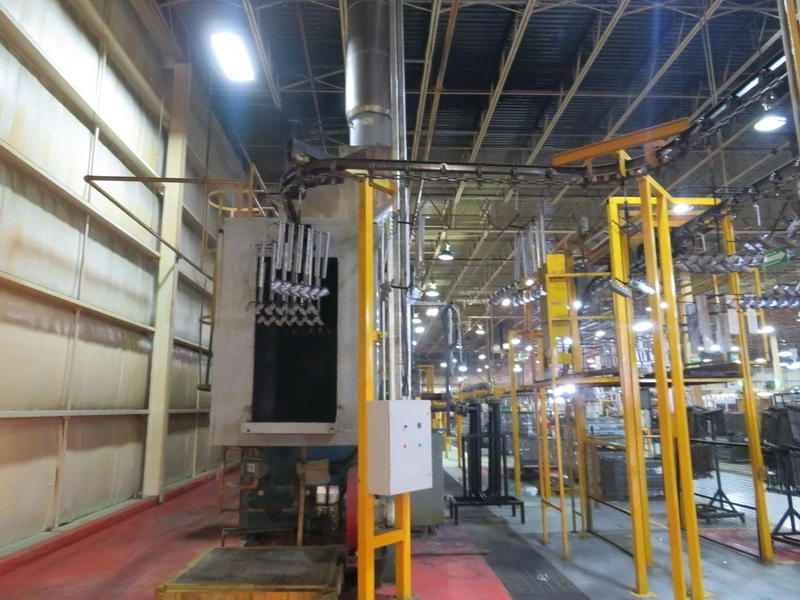

Equipped with: Oven, RO System, Control Panel, Tanks/Crash Tanks, Automated Conveyor, Part Opening Windows: 72” x 36” approx.,
