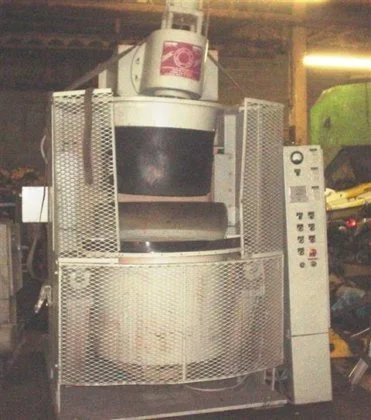

Almco - Sutton CFT-2000-1 Hi-Energy Spindle Finishing Machine

Almco - Sutton CFT-2000-1 Hi-Energy Spindle Finishing Machine

Model: CFT-2000-1

Floor area required (W x L x H): 60" x 72" x 92"

Power Required: 460 / 3 / 60 cycle

Water Required: 1/2" Line

Sewer: Outlet

Air: 1" Line, 80 PSI

Machine Weight (Approximate): 14,000 Lbs

Spindle Drive Motor: 25 HP /220/3/60

Rebuilt complete with NEW TUB & BEARINGS

Capable of processing parts up to 18" diameter

The spindle rotates in each direction for an electrically timed cycle

at speeds varying from 300 rpm to 2000 rpm.

Spindle is adjustable from 0 to 14 degree angle

Vibrating abrasive tank is raised to submerge fixtured piece part into

abrasive media.

While submerged, the part is is rotated for a prescribed time cycle for a

predetermined speed or speeds for the total time required.

Spindle head indexes left and right at variable speed, and adjustable distances

to suit piece part being processed.

Machine is equipped with a 1/4" thick, vulcanized neoprene-lined abrasive

tank 30" in diameter by 26" deep.
