16,000 LB LASCO HAMMER CELL

LASCO HAMMER CELL: The cell was used to forge I beams and Gears

NUTEC Gas Furnace

1200°C

Total heating capacity 11,600,000 MBTU/hr 12 burners)

70 to 80 pieces per hour

NATIONAL 10 Rolling Machine

TN 10

Stock size: 5”/ 125 mm

Maximum rolling length: 40” 1,016mm

Floor space Wide : 10’ 2” 3,100mm

Floor space length: 11’4” 3,450mm

Machine height: 8’ 6.3” 2,600mm

Machine total weight: 55,066lbs 25,000 kg

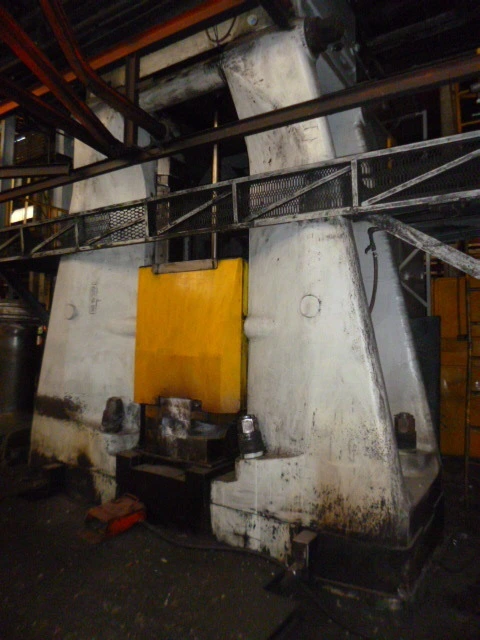

KGK 1600 Lasco Hammer Freefall

KGK 1600

Blow capacity: 16,000 kgm

Capacity of continuous blows/minute : 60 to 70

Blow high with standard die: 1,100mm

Hammer total weight: 287,000 kg

Anvil base weight: 192,000 kg

Ram weight: 12,000 kg

Die Maximum weight: 2,500 kg

Distance between upgrades

Hammer total height: 10,600mm

Height above the floor; 8,000mm

Wilkins & Mitchell Mechanical Press

W 102- 54-18

Press capacity: 1,500 tons

Speed: 16 SPM

Stroke: 26”

Shut Height: 6”

Table & Ram dimensions: 102” X 72”

Ram weight: 14 tons
