Multi-Stage Milbanks Indexing E-Coat System

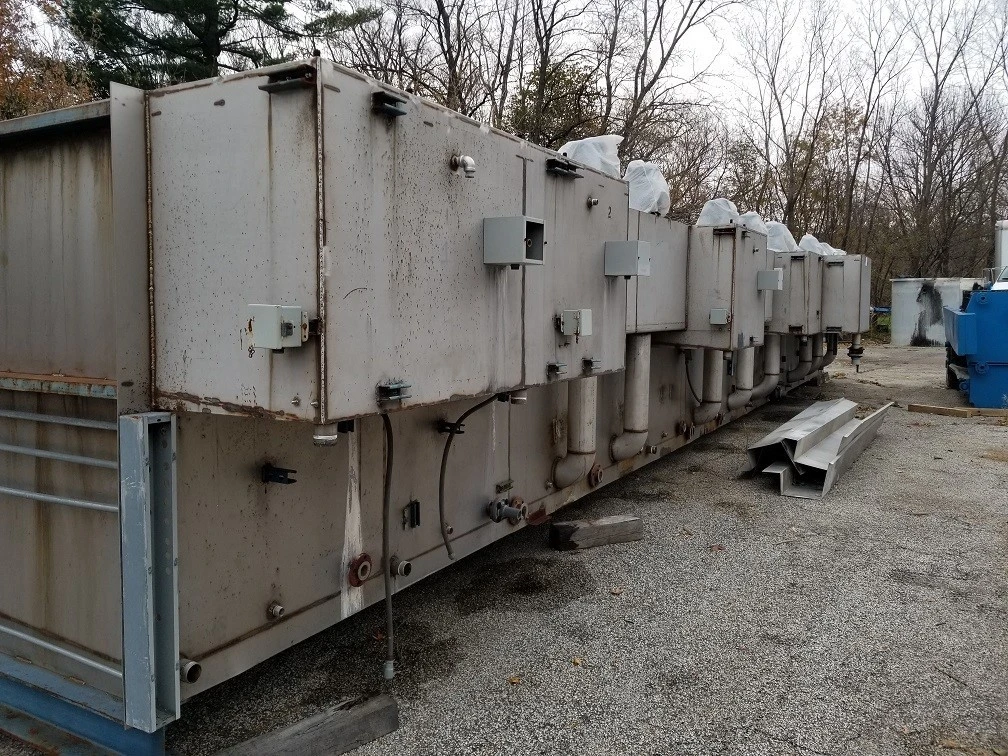

Eight Stage Pre treatment System (Ships as one module with E-Coat Tank and Post Rinses):

Stainless steel tanks

Stages 1, 2 & 5 Heated with Maxon Tube-o-Therm gas burners with gas trains

5 New 3 hp mixers with stainless shafts and impellers, for stages

Bag filter for stage 1

Pre-treatment crash tank

E-Coat System With Three Stage Post Rinses (Ships as one module with Pre Treatment tanks):

Stainless Steel E-Coat tank with dielectric liner

Three stainless steel post rinse stages

3 New 3 hp mixers with stainless shafts and impellers

Ultrafiltration Module

Stainless steel bag filter

Anodes membranes (new) - 10

Anolyte Flush Tank

Controlled Power Rectifier – 400 volts dc x 100 amps dc Refurbished

Packaged Chiller with buffer tank and pump

Stainless Steel plate and frame heat exchanger

Vertical Gusher E-Coat Pump - stainless

E-Coat crash tank

Bake Oven:

Gas Fired with top mounting Burner Box

Replace original burner box with one from Navistar

Modulating Eclipse gas fired burner with gas train

Exhaust Blower properly sized to exhaust the bake oven per code

Cooling Tunnel:

20 gauge building panels

Inlet Fan with Motor

Exhaust Fan with Motor

Conveyor Transfer System

Heavy duty three position Lowerator – Entrance end

Heavy duty two position Lowerator for lifting load bars into bake oven

Powered rotating device to orient the load bars for loading onto and off of the system

Powered Walking Beam over Pre-Treatment and E-Coat systems

Powered Walking Beam through Bake Oven and Cooling tunnel

Manual Power and Free Webb Unibilt conveyor loop for manually moving the loaded hangers to and from the machine

Sets of Webb Unibilt free trolleys with mini load bars

Main Load Bars

System Structural Cat Walks:

8 Heavy Duty Support Columns

Access Platforms

Cat walks for system

Electrical Controls:

Main system control panel as received with the equipment

Waste Treatment System:

DMP waste treatment system with Equalization and Neutralization tanks

Chemical feed pumps

Cone bottom tank

Filter Press
