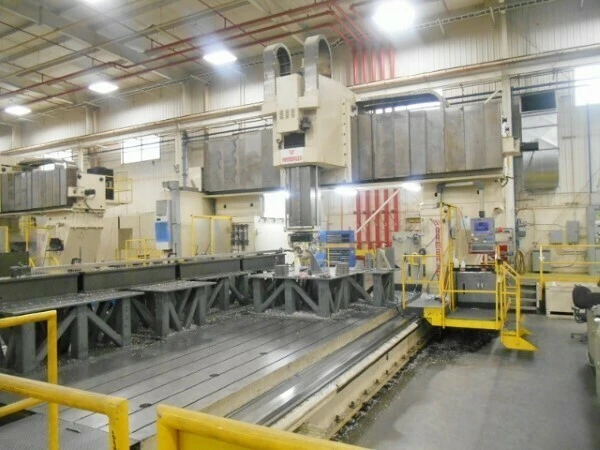

328" X 178" RAMBAUDI 5-AXIS VERTICAL DOUBLE COLUMN TRAVELING BRIDGE GANTRY MILL WITH NUTATING MILL HEAD
Boring - Vertical
328" X 178" RAMBAUDI 5-AXIS VERTICAL DOUBLE COLUMN TRAVELING BRIDGE GANTRY MILL WITH NUTATING MILL HEAD
480" X 156" Stationary Table Size
328" X-Axis Travel
178" Y-Axis Travel
56" Z-Axis Travel
80" Maximum Height From Table To Gauge Face When Fully Retracted
CAT 50 Spindle Taper With Power Tool Lock
105 Degree A-Axis Rotation
180 Degree C-Axis Rotation
60 Hp Main Power To Milling Head
175" Distance Between Columns
Power Locks
0 - 400 IPM Milling Feeds
400 IPM Rapid Traverse
0 - 4,000 RPM Spindle Speeds
Fidia C-20 CNC Controller
